CNC Control with Mitsubishi PLC Touchscreen

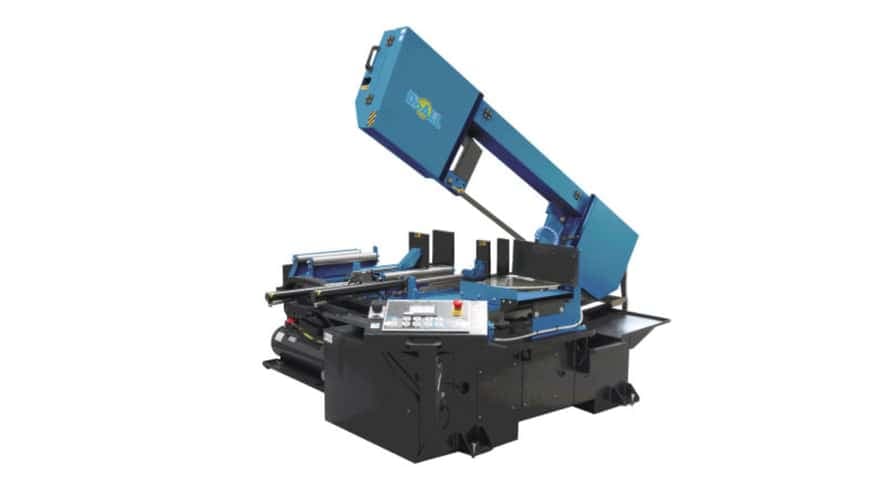

The DoAll S-500CNC features a Mitsubishi PLC control system with touchscreen interface, allowing operators to easily program cutting sequences, monitor operations, and store job parameters for repeat production.
Large Cutting Capacity
The machine supports versatile cutting sizes:
90° Rectangular: 14″ × 20″
90° Round: Approx. 14″
Alternate Capacity: 19.5″ × 13.25″
45° Miter (Rectangular): Approx. 19.5" x 13.25" (at 90°)
This makes it suitable for cutting a wide variety of metal shapes and sizes.
Wide Miter Cutting Range
The saw head provides miter cutting capability from 0° to 60° to the right, enabling precise angled cuts for structural and fabrication applications.
Automatic Indexing Feed System
The automatic material feed system supports multi-stroke indexing up to approximately 394″, allowing continuous cutting of long materials with high accuracy.
Variable Blade Speed with VFD
The bandsaw features variable blade speeds from 65 to 325 FPM, controlled by a Variable Frequency Drive (VFD) for optimized performance based on material type.
Powerful 4.75 HP Band Drive Motor
A 4.75 HP motor ensures smooth and efficient cutting, even when working with tough metals and large workpieces.
Hydraulic Band Tensioning System
The hydraulic blade tension system maintains consistent blade tension automatically, improving cutting accuracy and extending blade life.
Precision Blade System
The machine uses a 1-1/4″ wide blade with a length of 188″, providing excellent stability and precision during cutting operations.
Digital Readout for Cutting Angles
The digital angle display ensures precise miter cutting adjustments, reducing setup time and improving accuracy.
Flood Coolant System
The integrated coolant system helps control heat, improve surface finish, and extend blade life during continuous operation.
Work Light and Operator Convenience
A built-in work light enhances visibility in the cutting area, improving operator safety and efficiency.
Built for Industrial Automation
The DoAll S-500CNC is ideal for automated production lines, steel service centers, fabrication plants, and heavy-duty manufacturing environments.
It is a CNC horizontal metal cutting bandsaw designed for automated production cutting.
The machine can cut up to 14″ × 20″ rectangular and 14″ round materials.
It uses a 1-1/4″ wide blade with a length of 188″.
The blade speed ranges from 65 to 325 FPM.
The bandsaw is powered by a 4.75 HP band drive motor.
The machine uses a Mitsubishi PLC touchscreen control system.
Yes, it includes automatic indexing with multi-stroke feed up to approximately 394″.
The saw can perform miter cuts from 0° to 60° to the right.
Yes, it includes a flood coolant system.
The machine features a hydraulic blade tensioning system.
It can cut steel, stainless steel, aluminum, alloys, and structural metals.
Yes, it is designed for high-volume CNC production cutting.
The machine weighs approximately 3,307 lbs (1500 kg).
Yes, it includes a digital readout for cutting angles.
The machine is manufactured by DoAll, a leading global bandsaw manufacturer.
| Blade Length inches | 188" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Metal |
| Cutting Capacity (Rectangular @ 90°) | 14″ × 20″ |
| Cutting Capacity (Round @ 90°) | Approx. 14″ |
| Alternate Capacity | 19.5″ × 13.25″ |
| Cutting Capacity @ 45° (Rectangular) | 19.5" x 13.25" (at 90°) |
| Cutting Capacity @ 45° (Round) | Approx. 14.17″ |
| Miter Range | 0° – 60° (Right) |
| Blade Speed | 65 – 325 FPM (Variable) |
| Motor Power | 4.75 HP |
| Maximum Index Length | Approx. 394″ |
| Machine Weight | Approx. 3,307 lbs (1500 kg) |
| Machine Dimensions | Approx. 100″ × 100″ × 56″ |
