Heavy-Duty Industrial Frame Construction
The DoAll TF-1421 features a strong cast and welded steel frame designed for long-term industrial use. Its rigid structure minimizes vibration during operation, delivering precise and clean metal cuts.
Large Cutting Capacity
This metal cutting bandsaw offers excellent cutting capability with a 14″ x 21″ rectangular capacity and 14″ round capacity, allowing it to handle a wide range of structural materials and large workpieces.
Hydraulic Tilt Frame for Angle Cutting
The machine includes a hydraulic head tilt system up to 45° left and right, making it easy to perform accurate miter cuts for fabrication and structural applications.
Variable Blade Speed Control
With an infinitely variable blade speed range from 75 to 400 feet per minute (FPM), operators can adjust cutting speeds based on material hardness and thickness for optimal performance.
Powerful 5 HP Industrial Motor
The TF-1421 is equipped with a 5 horsepower motor that provides consistent power and torque for cutting heavy metal materials efficiently.
Automatic Hydraulic Head Feed
The machine features an automatic hydraulic head feed system, ensuring controlled cutting pressure, smoother operation, and longer blade life.
Hydraulic Vise Clamping System
A hydraulic vise system securely clamps the workpiece during cutting operations, ensuring stability and improved cutting accuracy.
Built-in Coolant System
The coolant system helps maintain optimal blade temperature, reduces friction, and increases blade longevity during continuous cutting operations.
Large Work Table Support
The machine includes a large work table, providing stable support for heavy or oversized materials during cutting operations.

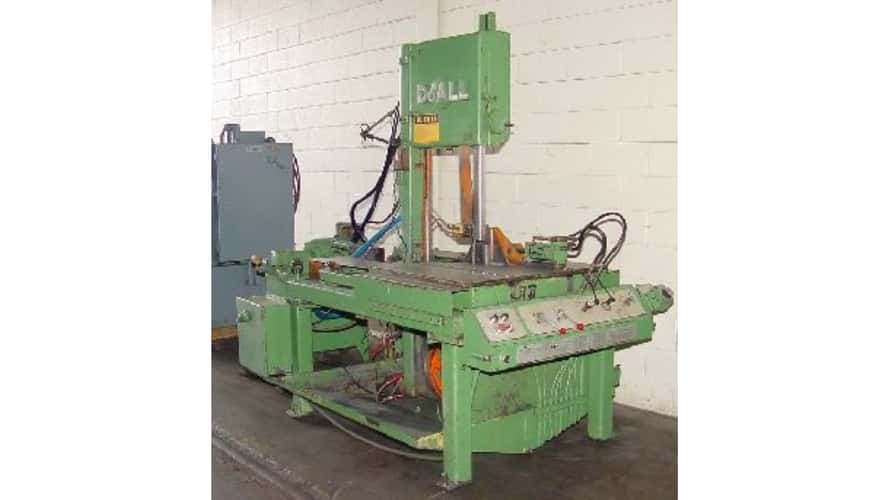

The DoAll TF-1421 is a hydraulic tilt-frame metal cutting bandsaw designed for industrial applications.
It offers a 14″ x 21″ rectangular cutting capacity and 14″ round capacity.
The machine can cut steel, stainless steel, aluminum, brass, copper, and other metals.
It uses a 1-inch wide blade with a length of approximately 172 inches.
The blade speed ranges from 75 to 400 feet per minute (FPM).
Yes, the saw head tilts up to 45° left and right hydraulically.
The bandsaw is powered by a 5 HP industrial motor.
Yes, the TF-1421 includes an automatic hydraulic head feed system.
It features a hydraulic vise for secure material clamping.
Yes, it includes a built-in coolant system to improve blade life and cutting efficiency.
Industries such as metal fabrication, structural steel processing, and manufacturing commonly use this machine.
The machine weighs approximately 3,500 lbs.
The work table size is approximately 32″ x 30″ or 36″ x 32″.
Yes, the blade speed is infinitely variable, allowing precise cutting control.
The machine is manufactured by DoAll, a leading brand in industrial bandsaw technology.
| Blade Length inches | 172" |
| Min/Max Blade Width | 1" to 1" |
| Machine Type | Metal |
| Cutting Capacity (Rectangular) | 14″ x 21″ (355 x 533 mm) |
| Cutting Capacity (Round) | 14″ (355 mm) |
| Capacity @ 45° | 14″ x 14″ |
| Blade Speed | 75 – 400 FPM (Infinitely Variable) |
| Head Tilt | 45° Left and Right (Hydraulic) |
| Motor Power | 5 HP |
| Table Dimensions | 32″ x 30″ or 36″ x 32″ |
| Machine Weight | Approx. 3,500 lbs |
| Feed System | Automatic Hydraulic Head Feed |
