Marvel 8 Mark 1 High Column Compatibility
The Marvel 8 MARK 1 HI COLUM Bandsaw Blade is designed for compatible Marvel Series 8 Mark 1 High Column metal-cutting bandsaws. Always verify the blade dimensions against the machine's existing blade requirements before ordering.
186-Inch Blade Length
The supplied product specification lists a blade length of 186 inches, equivalent to 15 feet 6 inches. Correct blade length is essential for proper installation, wheel tracking, tensioning, and machine operation.
1-Inch Blade Width
This blade has a listed width of 1 inch. Matching the correct blade width to the machine is important for proper guide engagement and stable cutting performance.

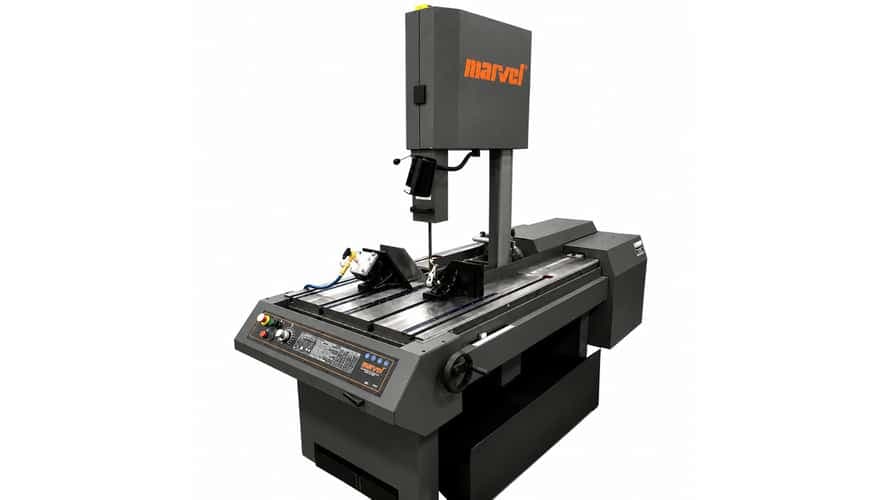

High Column Machine Application
The High Column configuration increases vertical clearance to approximately 28 inches at 90 degrees, allowing the machine to accommodate larger workpieces than the standard column version.
Vertical Tilt-Frame Design
The Marvel 8 Mark 1 uses a tilt-frame design in which the column and blade can tilt relative to the stationary work table. This configuration supports both straight and angled metal-cutting applications.
Miter Cutting Capability
The associated machine is designed for miter cuts up to approximately 45 degrees left and right. A correctly sized blade supports accurate angled cutting when the machine is properly adjusted.
Stationary T-Slotted Work Table
The work table remains stationary while the cutting frame tilts. Its T-slotted design provides a stable working surface and supports secure positioning of compatible workpieces and fixtures.
Variable Blade Speed
The Marvel 8 Mark 1 High Column machine is equipped with an infinitely variable blade-speed system, with the supplied specification indicating a range of approximately 50 to 450 FPM. Proper speed selection should be based on the material and blade tooth configuration.
Quick-Action Vise
The associated machine features a quick-action vise with jaws that can be positioned to accommodate different workpiece configurations. Proper clamping helps reduce movement and supports consistent cuts.
Structural Material Cutting
The machine is designed for industrial metal cutting and can accommodate compatible structural shapes and solid materials. Tooth pitch should be selected according to the workpiece size, shape, and material.
Large Vertical Cutting Clearance
The High Column modification provides approximately 28 inches of vertical capacity at 90 degrees, making the machine suitable for applications requiring additional clearance beneath the blade guides.
45-Degree Miter Capacity
For angled cutting, the machine can tilt approximately 45 degrees to either side. The blade must be properly tensioned and guided to maintain stable cutting during miter operations.
Integrated Coolant System
The associated Marvel 8 Series machine includes a flood coolant system to help manage heat and lubrication during metal cutting. Appropriate coolant use can contribute to smoother cutting and improved blade service life.
Power Chip Brush
A built-in power chip brush helps remove metal chips from the blade during operation. Effective chip removal helps keep the tooth gullets clear and supports consistent cutting performance.
Machine-Specific Replacement Blade
Before purchasing, compare the required blade length, width, thickness, tooth pitch, and guide configuration with your existing blade. This is particularly important when working with older Marvel equipment that may have been modified.
