300-Inch Blade Length
The Marvel 800 Series PC3S uses a 300-inch bandsaw blade, equivalent to approximately 25 feet. Correct blade length is essential for proper installation, tensioning, tracking, and safe operation.
2-Inch Blade Width
The 2-inch blade width provides exceptional rigidity and lateral stability for cutting very large structural workpieces and heavy metal sections.
0.063-Inch Blade Thickness
The supplied machine specification lists approximately 0.063-inch blade thickness, providing a robust blade profile for demanding industrial cutting applications.
Designed for High-Capacity Metal Cutting
This replacement blade is designed for compatible industrial metal-cutting operations involving large structural steel, heavy-wall tubing, beams, bars, and other substantial workpieces.
Large Cutting Capacity Compatibility

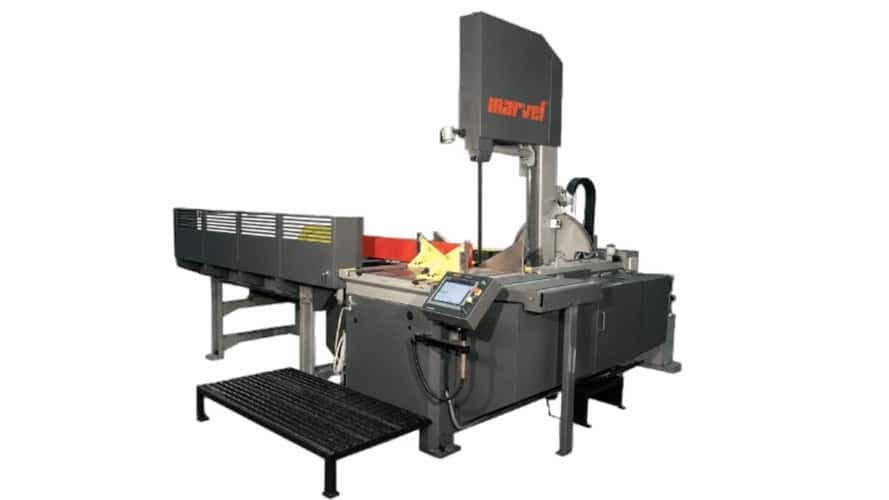

The compatible Marvel 800 Series PC3S provides approximately 31.25 × 37.5-inch cutting capacity at 90°, making this blade suitable for exceptionally large industrial material.
Infinitely Variable Blade Speed
The compatible machine provides an infinitely variable blade-speed range of approximately 60 to 400 FPM, allowing cutting conditions to be optimized for material type, thickness, and blade configuration.
Electronic Mitering Compatibility
The compatible tilt-frame system provides electronic mitering up to 60° left and right, allowing precise angled cuts without requiring operators to reposition heavy workpieces.
PC3 Programmable Control
The integrated PC3 touchscreen control provides graphical job programming, material-library functions, and automated cutting parameter setup, supporting repeatable production operations.
Automatic Bar Feed
The compatible machine features a servo-driven shuttle feed with a 72-inch stroke, allowing automated indexing and repeatable material positioning during production cutting.
Advanced Blade Guide System
Combination carbide and ball-bearing roller guides help stabilize the blade and support accurate tracking during high-load cutting operations.
Hydraulic Blade Tensioning
The compatible system uses hydraulically controlled blade tension to maintain the required blade stability during demanding production cutting.
3° Canted Column Design
The forward-canted column improves blade penetration into structural shapes and heavy materials while helping optimize cutting efficiency and blade life.
Safety and Blade Protection
The compatible machine includes safety lockout features and advanced blade-control systems designed to help protect the blade and machine during abnormal operating conditions.
Extended Blade Service Life
Correct tooth pitch, tension, cutting speed, feed force, coolant, and machine alignment can help reduce premature wear and maximize blade service life.
Professional Industrial Replacement Solution
A correctly sized 300-inch × 2-inch bandsaw blade provides a dependable replacement solution for compatible Marvel 800 Series PC3S equipment.
