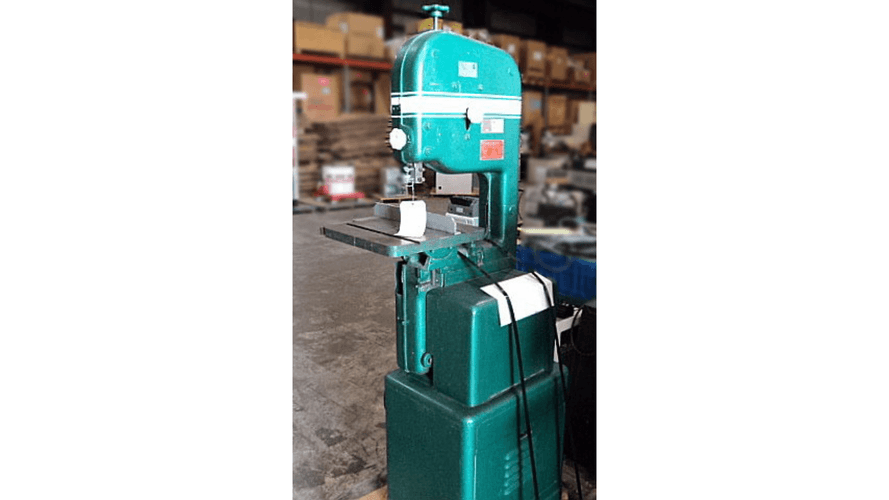

Powermatic 143 Bandsaw is a heavy-duty 14-inch woodworking bandsaw built for precision, durability, and multi-speed versatility. Featuring a geared transmission and solid cast-iron construction, it’s ideal for professional shops, furniture makers, pattern makers, and schools—handling everything from fine detail work to demanding cuts with consistent accuracy.
Heavy-Duty Cast Iron Construction
The Powermatic 143 features a solid cast iron body and frame, delivering exceptional rigidity and vibration damping. This ensures smoother cuts, improved blade stability, and long machine life.
14-Inch Throat & 6-Inch Cutting Height
With a 14-inch throat capacity and 6-inch maximum work height, the bandsaw handles a wide range of woodworking tasks including curved cuts, straight ripping, and light resawing.
Multi-Speed Blade System
One of the standout features of the Powermatic 143 is its 8-speed blade drive, achieved through a 2-speed transmission and step pulley system. Blade speeds range from 40 to 4000 feet per minute, making it suitable for fine scroll work as well as aggressive material removal.
Precision Cast Iron Work Table
The 15" x 15" cast iron table provides a flat, stable work surface and tilts 45° to the right and 12° to the left, allowing accurate bevel and angled cuts.
Balanced Cast Iron Wheels
Large, dynamically balanced cast iron wheels ensure consistent blade tracking, reduced vibration, and smooth cutting across all speed ranges.
Enclosed Steel Doors & Safety Design
The saw is equipped with enclosed steel doors, protecting the operator while reducing dust exposure and maintaining a clean working environment.
Reliable Motor Options
Typically powered by a 3/4 HP motor (with some configurations using a 1/2 HP motor), the Powermatic 143 delivers dependable torque for woodworking applications.
It is ideal for woodworking tasks such as straight cuts, curved cuts, and light resawing.
Its wide 8-speed range and geared transmission provide superior speed versatility.
Yes, low blade speeds allow excellent control for detailed work.
Yes, its cast iron construction makes it suitable for continuous professional use.
Blades from 1/8" to 3/4" are supported.
Yes, up to 45° right and 12° left.
It can perform light to moderate resawing depending on blade choice.
Commonly 3/4 HP, with some units using a 1/2 HP motor.
No, balanced wheels and cast iron construction minimize vibration.
Eight selectable blade speeds.
Yes, its mechanical speed system is robust and serviceable.
Yes, enclosed steel doors enhance operator safety.
Yes, it is commonly used in educational woodworking programs.
Yes, it is a stable floor-mounted machine.
Yes, it remains popular due to its durability and classic Powermatic build quality.
| Blade Length inches | 95" |
| Min/Max Blade Width | 1/8" to 3/4" |
| Machine Type | Wood |
| Throat Capacity | 14 inches |
| Maximum Cutting Height | 6 inches |
| Blade Speed Range | 40 – 4000 FPM |
| Speed Control | 2-Speed Transmission with Step Pulleys |
| Table Size | 15" x 15" Cast Iron |
| Table Tilt | 45° Right / 12° Left |
| Motor Power | 3/4 HP (some models 1/2 HP) |
| Machine Weight | Approx. 400 – 800 lbs (varies by configuration) |
