93-Inch Blade Length
The specified replacement blade length is 93 inches, matching the blade size used by the Wellsaw 58BD and 58BW. Correct blade length is essential for proper installation, tensioning, wheel tracking, and safe operation.
1/2-Inch Blade Width
The 1/2-inch blade width provides a practical balance of rigidity and flexibility for the portable Wellsaw platform, supporting accurate cutting across different metal sections.
Convertible Horizontal & Vertical Operation
The compatible 58BD and 58BW machines can quickly convert between horizontal and vertical cutting modes, allowing the same replacement blade to support a wider range of fabrication and metalworking tasks.
Dry and Wet Cutting Compatibility
The 58BD is the dry-cutting configuration, while the 58BW includes a flood coolant system. The replacement blade can be selected according to the machine configuration and cutting requirements.
Three-Speed Blade Drive Compatibility
The compatible machines provide three blade-speed settings of approximately 76, 141, and 268 SFPM, allowing operators to select suitable cutting speeds for different materials and thicknesses.
Premium Blade Construction
A suitable carbon-steel or bi-metal construction provides a combination of flexibility, wear resistance, and tooth durability for demanding metal-cutting applications.
Rigid Welded Steel Frame Compatibility

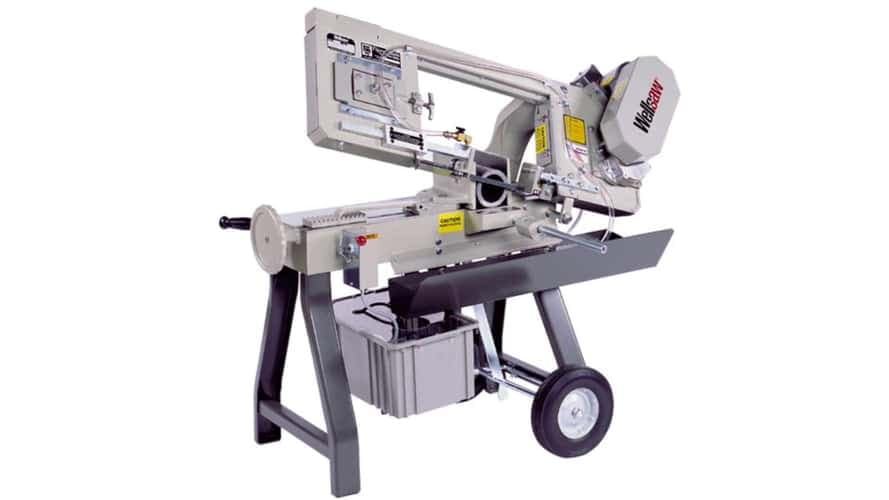

The Wellsaw 58BD and 58BW use a rigid welded steel frame and bed designed for stable operation while remaining portable for workshop and job-site use.
Cast-Iron Band Wheels
The compatible machines use approximately 11-inch cast-iron band wheels, providing stable blade support and smooth operation.
Sealed Ball-Bearing Blade Guides
Six sealed ball bearings mounted on cast-iron supports help maintain blade alignment, reduce unwanted movement, and support consistent cutting accuracy.
Hydraulic Feed Control
The compatible machine uses hydraulic feed control to regulate the saw frame's downward cutting movement, helping maintain controlled and consistent blade engagement.
Adjustable Counterbalance Spring
An adjustable counterbalance spring helps control frame movement and supports smoother feed behavior during different cutting applications.
Swivel Vise Compatibility
The quick-action manual vise can swivel up to 45°, making the blade suitable for both straight cuts and angled or miter-cutting applications.
Large Cutting Capacity
The machine provides approximately 9-1/2-inch round and rectangular capacities, along with an 11-inch flat capacity, making the blade suitable for a broad range of workshop metal stock.
Vertical Cutting Capability
In vertical operation, the compatible machine provides approximately 9-1/2-inch throat depth and 6-1/4-inch throat height, expanding the range of contour and freehand cutting applications.
Portable Workshop Design
Retractable wheels and a pull handle make the compatible 58BD and 58BW practical for moving the machine within workshops and between work areas.
