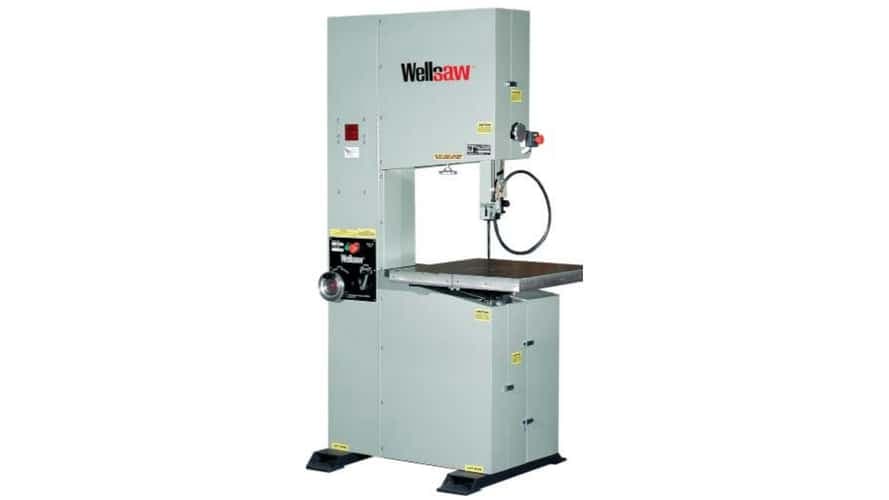

Precision Fit for Wellsaw V20
Designed for compatibility with the Wellsaw Model V-20F vertical metal-cutting bandsaw. The specified 177-inch blade length matches the standard machine configuration. The extended V-20 version requires a different blade length, so verify your exact model before ordering.
177-Inch Blade Length
The 177-inch blade length, equivalent to 14 feet 9 inches, is specified for the standard Wellsaw V20. Correct blade length is essential for proper installation, tensioning, and tracking.
Versatile Blade Width Range
Supports blade widths from 3/16 inch to 3/4 inch for the standard configuration. This range accommodates different contour-cutting requirements and general vertical metal-cutting applications.
Designed for Vertical Metal Cutting
Engineered for compatible vertical bandsaw applications, including tool-room work, contour cutting, fabrication, and cutting irregularly shaped metal components.
20-Inch Throat Capacity Compatibility
The Wellsaw V20 machine provides approximately 20 inches of throat capacity, allowing operators to work with larger materials and complex profiles within the machine's rated capacity.
Variable Blade Speed Compatibility
The standard machine provides a low-speed range of approximately 45–400 SFPM and a high-speed range of approximately 325–3,000 SFPM. Appropriate speed selection depends on the material, blade construction, and tooth configuration.
Compatible with Heavy-Duty Roller Guides
The machine uses heavy-duty roller guides that can rotate approximately 90 degrees to accommodate different workpiece shapes and cutting orientations. Proper guide positioning helps maintain blade stability.
Variable Frequency Drive Control
The V20's variable-frequency drive system supports adjustable blade speeds for different materials and cutting requirements, helping operators select suitable operating conditions.
Oil-Bath Gearbox Compatibility
The machine features a two-speed oil-bath gearbox with helical gears. This drive arrangement supports smooth power transmission during demanding vertical cutting applications.
Precision Cast-Iron Table
The standard Wellsaw V20 features a 26 × 26-inch cast-iron table that provides a stable work surface for contour cutting, shaping, and general metalworking.
Adjustable Table Tilt
The table tilts approximately 5 degrees inward and 45 degrees outward, supporting different workpiece positions and specialized cutting operations.
Blade Tension and Speed Indicators
The machine includes blade tension and speed indicators to help operators monitor setup conditions and maintain appropriate operating parameters.
Integrated Chip Removal Features
A shop-air chip blower, removable chip tray, and rotary blade brush help manage cutting debris and maintain visibility around the work area.
Optional Blade Welding Accessories
Optional accessories include a blade welder for internal sawing applications, along with a grinder and shear. These accessories support specialized blade preparation and maintenance tasks.
Reliable Industrial Performance
Proper blade selection, tension, tracking, tooth pitch, and cutting speed help maintain accurate results and extend service life in professional metalworking environments.
