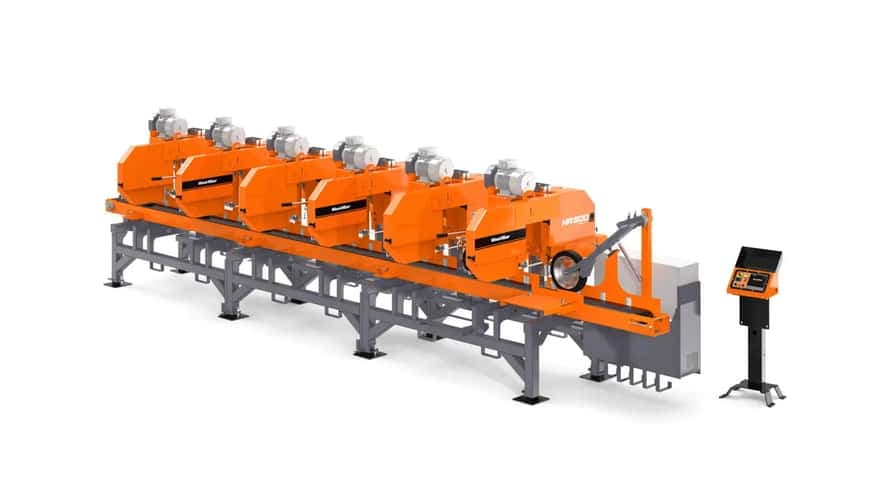

1. High-Performance Horizontal Resaw Design
The HR500 is specifically engineered for industrial cant processing and board production.
Benefits
Consistent board thickness
Smooth cutting performance
Reduced material waste
Efficient lumber production
Easy integration into production lines
Its horizontal cutting configuration provides excellent accuracy and operational stability.
2. Wide Cant Processing Capacity
The machine accommodates a broad range of cant dimensions for flexible production applications.
Cant Capacity
Maximum Cant Width: 12.75" (300 mm)
Minimum Cant Width: 2.95" (75 mm)
Maximum Cant Height: 15.75" (400 mm)
This versatility makes the HR500 suitable for hardwood, softwood, and pallet stock processing.
3. Precision Cutting Height Range
The HR500 offers precise control over finished board thickness.
Cutting Height Capacity
Operators can efficiently produce thin boards, dimensional lumber, and specialty wood products.
4. Industrial Electric Motor Options
The machine is available with multiple motor configurations to match production requirements.
Motor Options
These powerful motors provide reliable cutting performance for demanding industrial workloads.
5. Variable Feed Speed System
The HR500 features adjustable feed speed control for optimized production efficiency.
Feed Performance
Variable Feed Speed: 0–20 m/min
Smooth material handling
Optimized blade performance
Improved surface finish quality
Variable speed control allows operators to adapt cutting performance to different wood species and production demands.
6. Heavy-Duty Hold-Down Rollers
The machine incorporates industrial hold-down rollers to stabilize material during cutting.
Advantages
These rollers help maintain consistent production quality at higher feed speeds.
7. Flexible Head Adjustment System
The HR500 offers both manual and optional powered head adjustment configurations.
Adjustment Options
This flexibility allows operators to select the configuration best suited to their production requirements.
8. Industrial Blade System
The HR500 utilizes Wood-Mizer's proven narrow-band blade technology for superior lumber recovery.
Blade Specifications
Blade Length: 158" (4010 mm)
Blade Width Range: 32–35 mm
Thin-kerf cutting technology
The blade system is designed for precise cuts and long production runs.
9. Large Cast Steel Blade Wheels
The HR500 is equipped with heavy-duty blade wheels for stable operation and improved blade life.
Blade Wheel Features
Diameter: 23.6" (600 mm)
Cast Steel Construction
Precision balanced
Smooth blade tracking
These wheels help minimize vibration and maintain cutting precision.
10. Centralized Lubrication and Manual Blade Tensioning
The HR500 incorporates simple and reliable maintenance systems.
Features
These systems support dependable long-term industrial operation.
