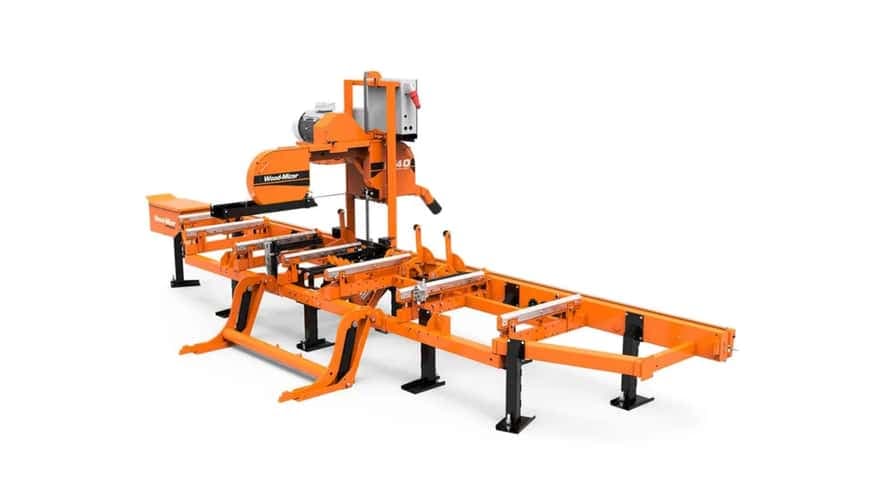

Wood-Mizer LT40 Portable Hydraulic Sawmill

1. Large Log Processing Capacity

The LT40 is designed to process substantial timber efficiently while maintaining cutting accuracy.

Cutting Capacity

• Maximum Log Diameter: 36 inches (91 cm)

• Wide Model Log Capacity: 41 inches (100 cm)

• Maximum Width of Cut: 28 inches (71 cm)

• Wide Model Width of Cut: 34 inches (86 cm)

• Maximum Length of Cut: 20 ft 2 in (6.15 m)

Additional bed extensions can be installed for processing longer logs and specialty timber.

2. Industry-Leading Thin-Kerf Technology

Wood-Mizer's thin-kerf blade system helps maximize board yield while reducing waste.

Benefits

• Higher lumber recovery

• Reduced sawdust production

• Increased profitability

• Lower operating costs

• More boards from every log

This technology is one of the primary reasons the LT40 remains popular among professional sawyers worldwide.

3. Electronic SW Setworks System

The LT40 comes equipped with Wood-Mizer’s advanced electronic SW Setworks.

Features

• Automatic board thickness calculations

• Digital height positioning

• Increased cutting accuracy

• Faster production cycles

• Reduced operator error

The system streamlines production and improves consistency across every cut.

4. Fully Hydraulic Log Handling Package

The LT40 significantly reduces manual labor through its integrated hydraulic log handling system.

Hydraulic Components

• Hydraulic loading arms

• Bi-directional chain log turner

• Hydraulic log clamp

• Hydraulic toeboards

• Vertical side supports

These features improve efficiency and reduce setup time between cuts.

5. Super Hydraulic Upgrade Available

For higher-volume operations, the LT40 can be equipped with a Super Hydraulic package.

Advantages

• Dual hydraulic pumps

• Faster cycle times

• Increased productivity

• Improved material handling

• Enhanced commercial output

The Super Hydraulic system is ideal for operators processing large volumes of timber daily.

6. Adjustable Power Feed System

The LT40 includes a variable-speed power feed system for smooth and controlled cutting.

Benefits

• Optimized feed rates

• Improved surface finish

• Better blade performance

• Increased operator control

• Consistent production quality

Operators can adjust feed speed according to wood species and cutting requirements.

7. Powered Saw Head Controls

The saw head is equipped with powered up/down controls for precision adjustments.

Features

• Accurate blade positioning

• Fast height adjustments

• Improved productivity

• Reduced operator fatigue

• Enhanced cut consistency

These controls simplify repetitive production tasks.

8. Multiple Engine and Power Options

The LT40 can be configured with a variety of power systems to suit different operating environments.

Available Power Options

Gasoline Engines

• 28 HP

• 35 HP

• 38 HP

Diesel Engines

• 35 HP (26 kW)

9. Patented Portable Trailer Design

The LT40 is built on Wood-Mizer’s proven portable trailer platform.

Trailer Features

• Cantilever design

• Trapezoid bed construction

• Precision leveling outriggers

• Road transport capability

• Quick site setup

This design enables operators to easily transport the mill between job locations.

10. Commercial-Grade Lumber Production

The LT40 is trusted by professional sawyers worldwide for reliable commercial lumber production.

Ideal Applications

• Commercial sawmills

• Custom sawing businesses

• Timber processing companies

• Hardwood milling

• Softwood production

• Slab cutting

• Beam production

• Portable milling services
