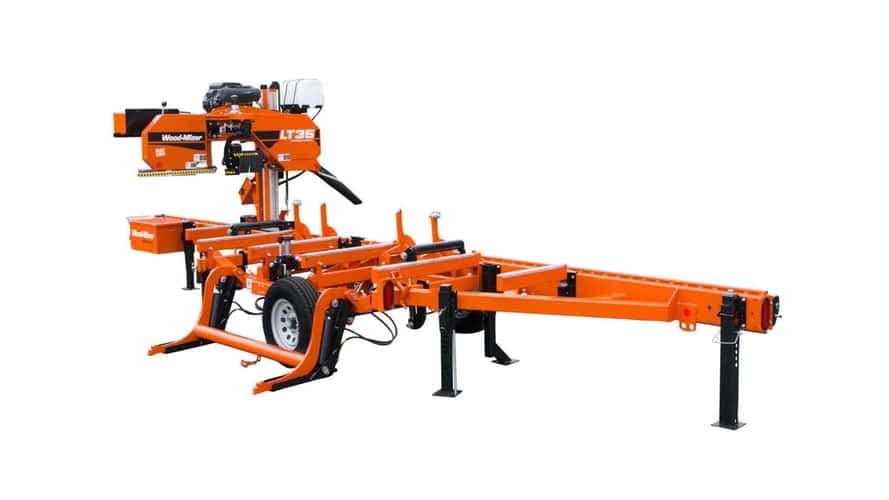

Wood-Mizer LT35 Portable Hydraulic Sawmill

1. Large Log Processing Capacity

The LT35 is designed to handle substantial logs while maintaining cutting accuracy and productivity.

Cutting Capacity

• Maximum Log Diameter: 32 inches (81 cm)

• Maximum Width of Cut: 26 inches (66 cm)

• Maximum Depth of Cut: 10.5 inches (26 cm)

• Standard Log Length: 21 feet (6.4 m)

• Extended Cutting Length: Up to 45 feet (13.7 m) with bed extensions

• Maximum Log Weight: 4,400 lbs (1,996 kg)

This capacity allows operators to process a wide range of hardwood and softwood logs efficiently.

2. Hydraulic Log Loading System

The LT35 comes equipped with hydraulic loading arms that significantly reduce manual labor.

Benefits

• Easy loading of heavy logs

• Faster setup times

• Improved operator safety

• Reduced physical strain

• Increased daily production

Hydraulic loading allows a single operator to handle large logs with ease.

3. Heavy-Duty Hydraulic Log Turner

The machine includes a powerful steel claw log turner for rotating logs into the ideal cutting position.

Advantages

• Precise log positioning

• Improved lumber recovery

• Reduced waste

• Faster production cycles

• Better control over log orientation

This feature is especially useful when processing irregular or large-diameter logs.

4. Hydraulic Clamping System

The LT35 utilizes a hydraulic claw clamp that securely holds logs during sawing operations.

Benefits

• Enhanced cutting accuracy

• Reduced log movement

• Better board consistency

• Improved safety

• Reliable production performance

Secure clamping ensures every cut remains precise and repeatable.

5. Hydraulic Toe Boards for Log Leveling

Two hydraulic roller toe boards allow operators to level tapered logs quickly.

Features

• Accurate log alignment

• Improved board quality

• Increased lumber recovery

• Faster setup

• Better production consistency

This system minimizes waste caused by uneven log positioning.

6. Adjustable Side Supports and Backstops

The LT35 features four adjustable side supports and hydraulic backstops.

Advantages

• Improved log stability

• Better cutting precision

• Enhanced safety

• Quick log positioning

• Suitable for various log sizes

These supports help maintain optimal alignment throughout the cutting process.

7. Patented Cantilever Sawhead Design

Wood-Mizer’s industry-leading cantilever sawhead provides unmatched visibility and cutting flexibility.

Benefits

• Open-side access

• Easier slab removal

• Improved operator visibility

• Greater cutting accuracy

• Simplified maintenance

This design has become a benchmark in portable sawmill technology.

8. SimpleSet Computerized Setworks

The LT35 comes equipped with Wood-Mizer's SimpleSet computerized setworks system.

Features

• Automatic board thickness positioning

• Preset cutting dimensions

• Faster production

• Reduced measuring errors

• Consistent board sizing

Operators can quickly switch between different board dimensions with precision.

9. Powered Variable-Speed Feed System

The powered feed system allows smooth forward and reverse sawhead movement.

Advantages

• Variable feed rates

• Improved surface finish

• Better cutting control

• Reduced operator fatigue

• Higher productivity

Feed speed can be adjusted according to wood species and cutting requirements.

10. Efficient Thin-Kerf Blade Technology

The LT35 utilizes Wood-Mizer's renowned thin-kerf blade system.

Benefits

• Increased lumber yield

• Reduced sawdust waste

• Lower operating costs

• Improved profitability

• Superior cutting efficiency

More usable lumber can be recovered from every log processed.
