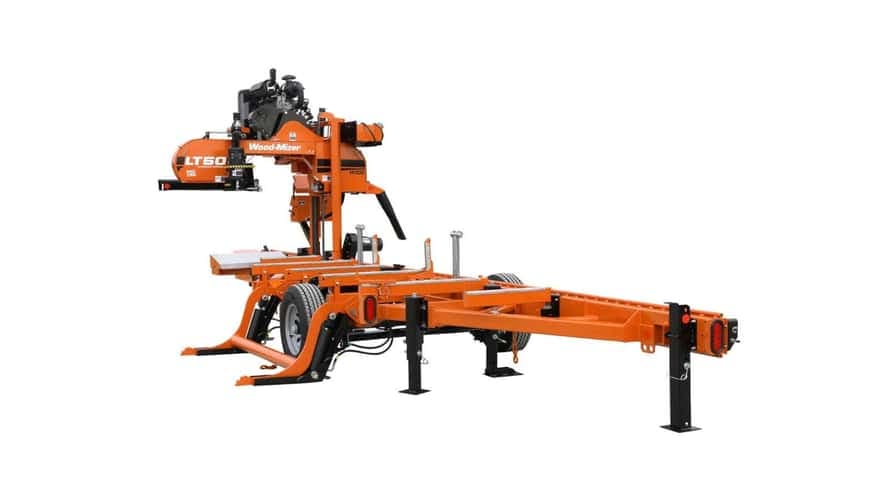

Wood-Mizer LT50 Portable Sawmill

1. High-Capacity Log Processing

The Wood-Mizer LT50 is built to handle large logs and demanding production schedules.

Cutting Capacities

Standard Model

• Maximum Log Diameter: 36 inches

• Maximum Width of Cut: 28 inches

Wide Model

• Maximum Log Diameter: 41 inches

• Maximum Width of Cut: 34.5 inches

These generous capacities allow operators to process large hardwoods, softwoods, slabs, beams, and specialty timber products efficiently.

2. Impressive Production Output

The LT50 is engineered for commercial productivity and continuous operation.

Production Advantages

• Up to 700 board feet per hour

• Faster log processing

• Reduced downtime

• Increased profitability

• Excellent material recovery

Its efficient sawing system makes it ideal for professional sawmill operations.

3. Patented Open-Sided Sawhead Design

One of Wood-Mizer's most recognized innovations is the open-sided cantilever sawhead.

Benefits

• Easier handling of oversized logs

• Better slab production capability

• Improved off-bearing access

• Enhanced visibility during cutting

• Greater operational flexibility

This unique design allows operators to process logs and timber that may be difficult on traditional twin-column sawmills.

4. AccuSet 2 Computerized Setworks

The LT50 features the advanced AccuSet 2 Setworks system for automatic head positioning and thickness control.

Key Advantages

• Automated board thickness calculations

• Increased cutting accuracy

• Faster production cycles

• Reduced operator error

• Improved consistency across cuts

This technology significantly improves efficiency during high-volume production.

5. Thin-Kerf Blade Technology

Wood-Mizer's industry-leading thin-kerf technology helps maximize lumber yield from every log.

Benefits

• Less wood waste

• Higher lumber recovery

• Reduced sawdust production

• Lower cutting resistance

• Improved profitability

This technology is particularly valuable when processing high-value hardwoods and specialty timber.

6. Multiple Engine and Power Options

The LT50 is available with several power configurations to meet different production requirements.

Available Power Options

Gasoline Engine

• 38 HP Kohler Engine

Diesel Engines

• 35 HP Yanmar

• 51 HP CAT (Industrial Configuration)

Electric Motor

• 25 HP Electric Drive

These options provide flexibility for both portable and stationary milling operations.

7. Heavy-Duty Blade System

The LT50 utilizes industrial-grade blade components for dependable performance.

Blade Specifications

• Blade Length: 171 inches

• Blade Width Range: 1.25 inches

• Thin-kerf bandsaw technology

• Precision cutting capability

The blade system delivers smooth cuts and extended blade life.

8. Durable Cast Iron Band Wheels

The LT50 uses large cast iron band wheels designed for stability and reliability.

Specifications

• Wheel Diameter: 19 inches

• Cast iron construction

• Smooth blade tracking

• Reduced vibration

• Improved cutting consistency

These wheels contribute to superior blade performance during extended operation.

9. Extendable Bed System

The modular bed design allows operators to increase cutting length as production needs grow.

Capacity

• Standard Cutting Length: Up to 21 feet

• Additional extensions available

• Flexible mill expansion

• Accommodates longer logs and beams

This scalability makes the LT50 a long-term investment for growing businesses.

10. Professional Hydraulic Log Handling

Hydraulic log handling systems reduce physical labor and increase productivity.

Hydraulic Functions

• Log loading

• Log turning

• Log clamping

• Log leveling

• Efficient positioning

These features significantly improve operator efficiency and production speed.
