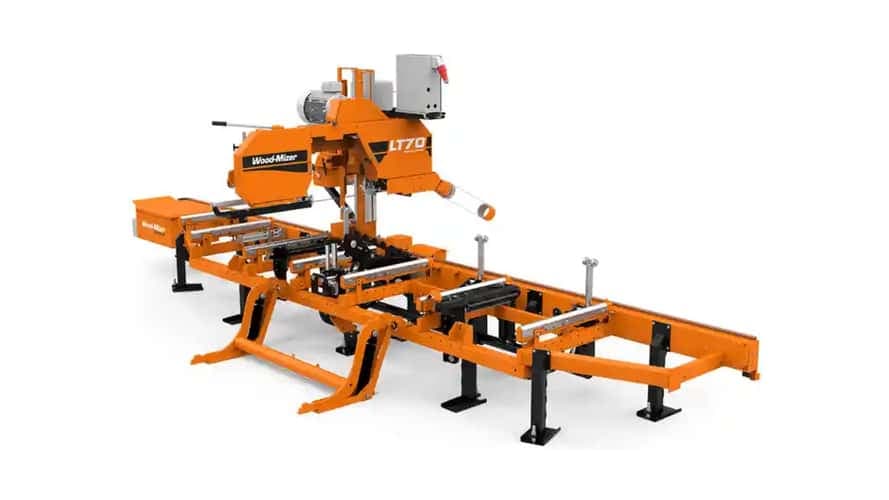

The Wood-Mizer LT70 is a professional-grade portable sawmill designed for high-volume lumber production. With advanced hydraulic log handling, precision thin-kerf sawing, and automation features, it delivers exceptional cutting accuracy, lumber recovery, and productivity for commercial sawmilling operations.
1. Large Log Cutting Capacity
The Wood-Mizer LT70 is designed to process large timber efficiently while maintaining outstanding cutting accuracy.
Cutting Capacities
Standard Head Maximum Log Diameter: 36" (95 cm)
Wide Head Maximum Log Diameter: 41" (105 cm)
Maximum Width of Cut (Standard): 28.5" (73 cm)
Maximum Width of Cut (Wide): 34" (86 cm)
Maximum Depth of Cut: 15" (39 cm)
These capacities allow operators to process large hardwood and softwood logs into high-value lumber products.
2. Advanced Thin-Kerf Blade Technology
Wood-Mizer's thin-kerf blade system maximizes lumber yield by reducing material waste.
Benefits
Higher board recovery
Reduced sawdust production
Lower operating costs
Increased profitability
Superior surface finish
The LT70 is designed to produce more saleable lumber from every log.
3. Powerful Hydraulic Log Handling System
Hydraulic log handling dramatically reduces manual labor and improves production speed.
Hydraulic Features
Hydraulic log loading
Log turning system
Hydraulic clamps
Log leveling arms
Efficient material positioning
These features improve operator safety while increasing daily production output.
4. Professional Blade Management System
The LT70 includes advanced blade support technologies to ensure consistent cutting performance.
Blade Features
Hydraulic blade tensioning
LubeMizer blade lubrication
Precision blade guide system
Improved blade tracking
Extended blade life
These systems help maintain cutting accuracy throughout long production shifts.
5. Multiple Blade Width Compatibility
The LT70 supports a wide range of blade sizes for different cutting applications.
Blade Specifications
Blade Length: 184" (4670 mm)
Blade Width Range: 1.25" to 2"
Standard Blade Width: 1.25"
Wide Head Compatibility: Up to 2" blades
This flexibility allows operators to optimize cutting performance for different timber species and production requirements.
6. Industrial Blade Wheel System
The LT70 utilizes premium blade wheels designed for smooth operation and extended blade life.
Blade Wheel Features
Belted blade wheels
Optional crowned cast-iron wheels
Excellent blade tracking
Reduced vibration
Enhanced durability
The system ensures stable cutting performance even during demanding sawing operations.
7. Powerful Electric Drive Options
The LT70 is available with industrial-grade electric motor configurations suitable for commercial production environments.
Available Power Options
15 kW Electric Motor
18.5 kW Electric Motor
These motors provide consistent power for cutting dense hardwoods and large-diameter logs.
8. Precision Cutting and Setworks Integration
The LT70 supports advanced setworks technology for repeatable and accurate lumber production.
Advantages
Consistent board thickness
Reduced operator error
Faster production cycles
Increased efficiency
Improved product quality
This makes the LT70 ideal for commercial lumber operations where precision is critical.
9. Expandable Bed System
The modular bed design allows operators to process longer logs as production needs grow.
Benefits
Standard capacity up to 20'2" logs
Bed extension options available
Flexible mill configuration
Future expansion capability
Increased production versatility
The expandable system provides long-term scalability for growing businesses.
10. Built for Professional Sawmill Operations
The LT70 is engineered for demanding industrial and commercial environments.
Common Applications
Commercial sawmills
Custom lumber production
Hardwood processing
Softwood processing
Timber frame manufacturing
Slab production
Live-edge lumber milling
High-volume lumber operations
The LT70 is a professional hydraulic portable sawmill used for producing lumber, slabs, beams, and custom wood products.
The standard model handles logs up to 36 inches, while the Wide version handles logs up to 41 inches in diameter.
The standard LT70 uses a 184-inch bandsaw blade.
The standard head cuts up to 28.5 inches wide, while the Wide head can cut up to 34 inches wide.
Yes. Hydraulic log loading, turning, clamping, and leveling systems are available.
The LT70 is available with 15 kW and 18.5 kW electric motor configurations.
LubeMizer is Wood-Mizer’s blade lubrication system that improves blade performance and reduces buildup during cutting.
Yes. The LT70 is designed for both hardwood and softwood processing applications.
Yes. Additional bed extensions can be installed to process longer logs.
Thin-kerf blades reduce waste and increase lumber recovery, helping maximize profit from every log.
| Blade Length inches | 184" |
| Min/Max Blade Width | 1.25" to 1.25" |
| Machine Type | Sawmill |
| Maximum Log Diameter (Standard) | 36" (95 cm) |
| Maximum Log Diameter (Wide) | 41" (105 cm) |
| Maximum Width of Cut (Standard) | 28.5" (73 cm) |
| Maximum Width of Cut (Wide) | 34" (86 cm) |
| Maximum Depth of Cut | 15" (39 cm) |
| Maximum Log Length | 20'2" (6.2 m) Standard |
| Blade Width Capacity | 1.25" – 2" |
| Electric Motor Options | 15 kW or 18.5 kW |
| Cutting Technology | Thin-Kerf Bandsaw |
