36 in., Heavy Duty, Vertical Band Saw, 3HP, 230/460V

Trajan VBS-3612

Standard Features

  • Blade Guide: Carbide
  • Blade Length: 198.25
  • Blade Speed: Variable 50 - 4925
  • Cut Method: Vertical
  • Feed System: N/A
  • Laser Alignment: No
  • Miter Cut: No
  • Motor: 3HP 3Ø
  • Swivel Method: N/A
  • Table Height: 40
  • Voltage: 230/460V
  • Ship Wt: 1890 lbs.

Cutting Capacity

Cutting Angle Stock Shape Stock Size
0° Bar Stock 12" x 12"
Rectangular Stock 12" x 36"
Mouseover to zoom

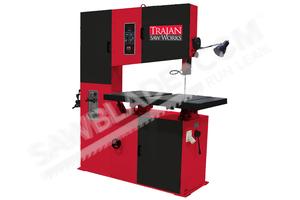

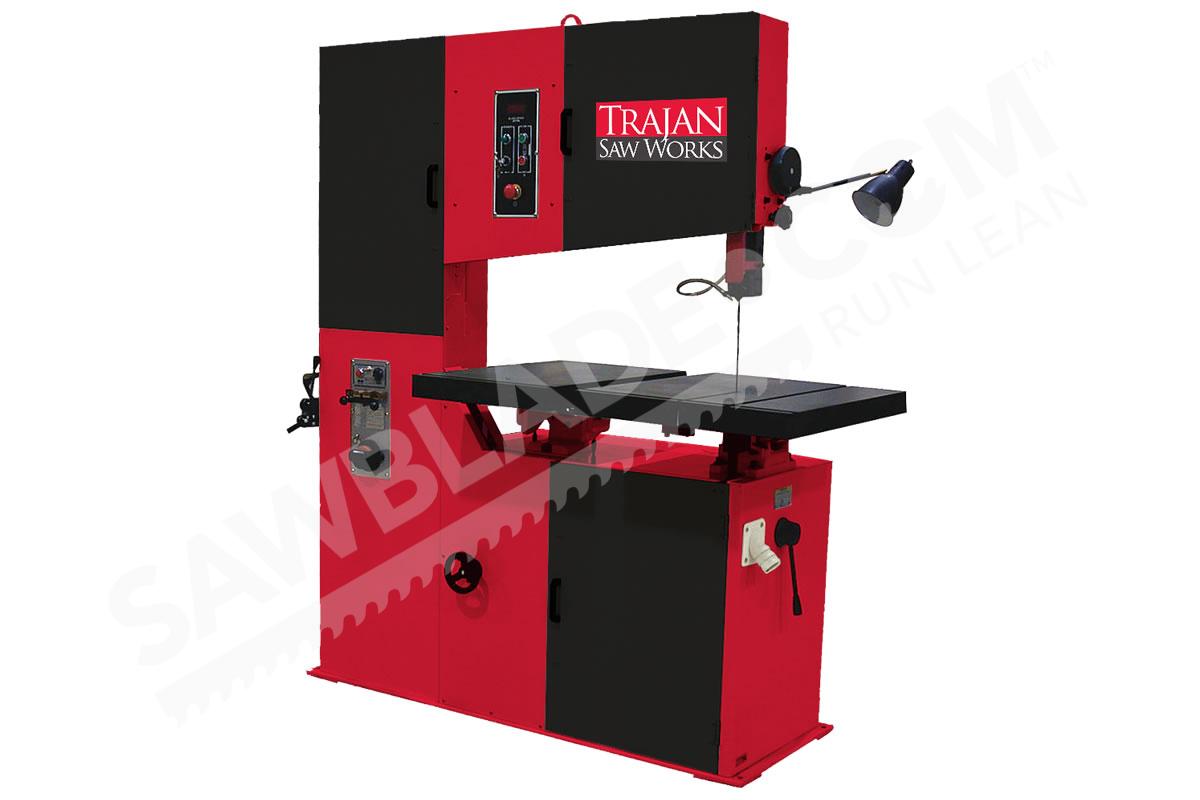

VBS-3612 36 in., Heavy Duty, Vertical Band Saw, 3HP, 230/460V
VBS-3612 36 in., Heavy Duty, Vertical Band Saw, 3HP, 230/460VImage unavailableImage unavailableImage unavailableImage unavailable
Downloads
$9,700.00

Residential    Commercial
No    Yes
This item requires a fork-lift for delivery.

Trajan VBS-3612 Description and Features

The Trajan VBS-3612, 36 in., Heavy Duty, Vertical Band Saw

This vertical band saw is a heavy duty metal cutting bandsaw able to handle large production pieces due to its extra large twin tables. The Trajan VBS-3610 can handle pieces 12" tall and has a 36" throat to allow you to work with extra large stock and/or bundles.. With a 3HP, 3 phase 230V Motor this machine can handle your most challenging jobs. The tables tilt 10 degrees left and a full 45 degrees right.  This bandsaw also includes a Bimetal blade welder, grinder and cutter to further its capabilities.

Table Tilt
Right 45 Deg
Left 10 Deg
Features
• 3HP, 3Ph, 230/460V (pre-wired 230V), 60Hz
• Two-Speed transmission and variable speed allow for a wide range of blade speeds
• Multi-tilting worktable
• Bi-Metal blade welder, grinder and cutter
• Three wheel system for cutting wide pieces
• Heavy-duty, completely enclosed steel frame
