Roller Conveyors and Material Handling

RT RS 500

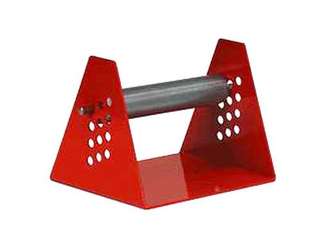

RS 500 Portable Roller
Universal Adjustable Roller
For all Portable Chop Saws

RS 500 Portable Roller Stand is made in the USA and For All Types Of Saws

The Patented Portable Roller Stand That Will Keep Your Material Straight

The RS 500 Roller Stand is 8" wide, 6" tall with an 8" roller and a 93lb capacity. It has with adjustability from 2" to 4.75" in ¼" increments and that means-no more fighting with the material to get the right height and cut it straight! The roller stand's powder coated steel wide base creates a strong base that provides extra stability and durability, while the steel-polished roller allows for free horizontal movement of the work piece on the roller. The stand's ergonomic shape allows for easy use everywhere and adjusting to most work heights.

Compact and portable, the RS 500 Roller Stand is designed to be a compact size for easy storage and transportation. Weighing in at only 1 pound this stand can go anywhere with you! But don't let its size and weight fool you, it's still tough enough to use every day and on all types of saws.

The Patented RS 500 Roller Stand is made in the USA, solid, dependable, easy to use... and available only here at sawblade.com

Product Details
photo below

^$85.⁰⁰

RT RS 500 MP02

RS 500 Portable Roller
Pack of Two Universal Adjustable Roller
For all Portable Chop Saws

Product Details
photo below

^$119.⁰⁰

RT RS 500 MP03

RS 500 Portable Roller
Pack of Three Universal Adjustable Roller
For all Portable Chop Saws

Product Details
photo below

^$165.⁰⁰

RT RS 500 MP05

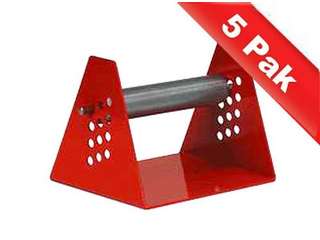

RS 500 Portable Roller
Pack of Five Universal Adjustable Roller
For all Portable Chop Saws

Product Details
photo below

^$255.⁰⁰

RT 5FOOT

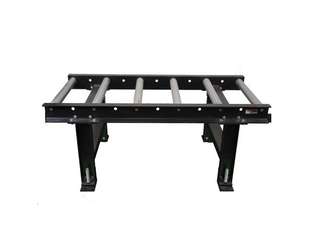

5' Medium Duty Roller Table
2400 Lb. Capacity
Height Adjustable

5-foot roller tables are lighter and lower to the ground than many of the competitor models, with an easily adjustable height range of 24.5” to 27.5”. Its 24” width is perfectly suited for a wide range of saws, and allows for full movement and support of whatever material you’re cutting. Our solid 2.25” rollers and are guaranteed to provide a smooth, effortless motion, so that the saw operator can focus entirely on the cut without having to worry about constantly replacing, holding, or straightening the material. A good roller table not only provides a platform to support the material, but takes the legwork out of manually feeding bar or tube stock into the head of the machine.

Height Range 24.5"- 27.5"
24" Width
400 Lbs. Capacity Per Roller

Product Details
photo below

^$1666.^{67 **}

TPWS MS 046

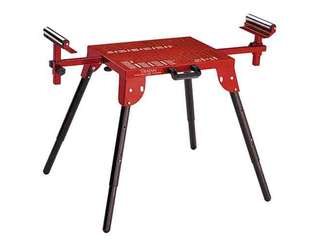

Trajan Portable Work Station
Durable, Jobsite Works Station
All Steel Construction

Trajan Portable Work Station

Application

Jobsites, Home Shop
Fabricators, Welders
Use with most power tools

Features

All Steel Construction
Durable for Home and jobsite applications

Benefits

Allows for safe operation of power tools
portable, always handy
Stright cuts, reduce set-up time

Product Details
photo below

^$245.⁰⁰

RT 10FOOT27

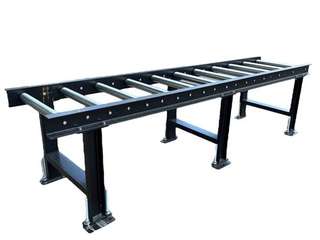

10' Heavy Duty Roller Table
27" Max Height
Modular Design

Made in the USA, Our 10’ Heavy Duty Roller idler tables are engineered to help operators work quickly and effectively. The 10′ heavy duty roller table is part of our standard medium to heavy duty line and is designed to provide years of high performance and reliable service. It's modular pieces mean that the 10′ heavy duty roller table can be adjusted to function smoothly with just about any band saw. It can also be altered to work with many different types of applications.

Rollers: 2-1/2" diameter
11 ga. wall, 24" working width
12" on center
700 Lbs. capacity per roller
1 1/16" hex shaft
Frame: 5" channels
3 Legs per conveyor
Height 27", +/- 3"
Adjustable Leveling Bolt

Product Details
photo below

^$2415.^{00 **}

RT Stock Stand Medium

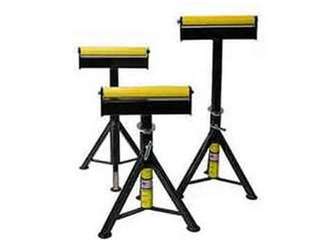

Roller Stock Stand Medium
Medium Duty
Adjustable 28" to 40"

These stock roller stands have a range of adjustable heights, with a minimum or 28″ and a maximum of 40″. The stock roller stands bases accept V head, roller head, transfer balls, and bar stock. Each one also comes with a safety washer with a full array of features, including a “EZ” lift release tab, a “fall proof” design to prevent slippage, and a retainer pin, which helps avert washer loss.

Adjustable Height: Minimum 28” Maximum 40"
Certified Testing By Independent Source
All Stands Have Safety Instructional Label & Load Capacity Label With 2,1 Safety Factor
Bases Accept V Head, Roller Head, Transfer Balls, & Bar Stock
Built In 'Stop' For Slip Tube To Prevent Injury
Washer Face On Slip Tube For Smoother Screw Adjustment
Legs Are 1" Square Tube 16 Gage Wall Thickness
All Legs Have 2" Diameter Foot Surface
Safety Washer Retainer Finger Formed From 12 Gage Steel Sheet
Safety Washer Has "EZ" Lift, Release Tab
Safety Washer Has Retainer Pin To Prevent Loss Of Washer
Safety Washer "Fall Proof" Design Prevents Slippage Prior To Tightening "T" Handle
Bar Stock Roller Head Painted With High Visibility Yellow Paint
Working Load Capacity for Bar Stock Roller Head Stands 2,500 Lbs.
Complete Stand With Bar Stock Head Weighs 20 Lbs.
Stand has Powder Coat Finish

Product Details
photo below

^$242.^{86 **}

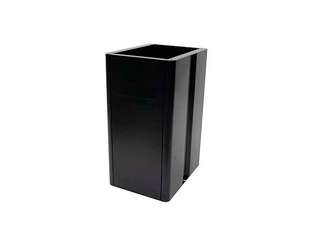

P TRAJAN 15086

Saw Stand
Accessory for Trajan 125,150,170

Accessory Stand For Trajan 125, 150, and 170.

Product Details
photo below
Blade Width	All Blade Width
Model	All
System	Base & Table

^$189.⁰⁰

P TRAJAN 15W003

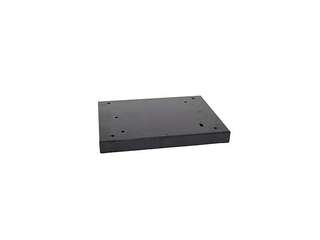

Connector Plate for Trajan 125
Connects 125 to Stand 15086

Connector Plate For Trajan 125 Connecting To The Stand 15086

Product Details
photo below

^$55.⁵⁰

RT 5FRR

5" Replacement Roller
Fits: RT 5FOOT Roller tabe
Industrial Replacement Roller
