Understanding centerline is essential for achieving accurate and consistent cuts on any bandsaw. Whether you are installing a new guide kit or fine-tuning your current setup, proper alignment plays a critical role in performance.

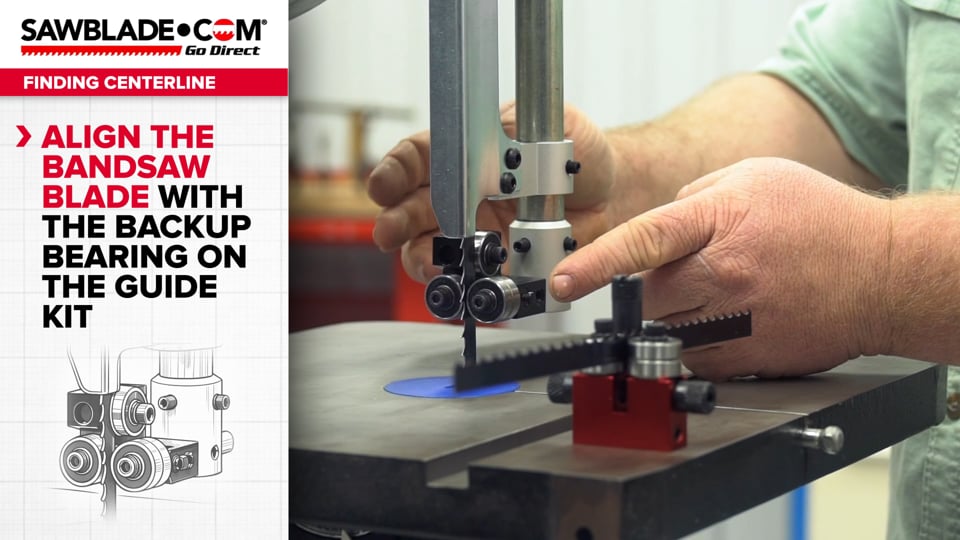

At SawBlade.com, centerline refers to aligning the bandsaw blade with the backup bearing in your guide system. When properly set, this alignment improves cut quality, reduces blade wear, and ensures smoother operation.
This Tech Tip explains what centerline means, how to adjust it, and how to achieve proper alignment for optimal cutting results.
What Is Centerline in Bandsaw Setup
Centerline is the position where the bandsaw blade is properly aligned with the backup bearing in the guide system.
The goal is to ensure that:
The blade runs straight and true
The backup bearing provides proper support
The guide system is evenly aligned
This alignment forms the foundation for clean, accurate cuts.
Why Centerline Alignment Matters
Proper centerline alignment directly impacts the performance of your bandsaw.
Benefits include:
Improved cutting accuracy
Reduced blade wear
Smoother operation
Better overall control during cutting
Without correct alignment, the blade may drift, wear unevenly, or produce inconsistent results.
Common Methods to Adjust Centerline
Depending on your machine, there are several ways to achieve proper centerline alignment:
Adjusting Bearings
Move the guide bearings in or out
Fine-tune their position relative to the blade
Using Eccentric Mounting Hardware
Some machines use eccentric shafts
Rotating these shifts the guide assembly left or right
Repositioning Components
Certain hardware can be flipped 180 degrees
Allows incremental adjustments (typically around 1/4 inch)
Each method helps bring the blade into proper alignment with the backup bearing.
Setting Proper Bearing Clearance
Once centerline is achieved, setting the correct clearance is critical.
The backup bearing should:
Sit just behind the blade
Not touch the blade during normal operation
Be spaced approximately the thickness of a business card away
This ensures the blade is supported when needed, without creating unnecessary friction.
Key Tips for Accurate Alignment
To achieve the best results:
Make small adjustments and check alignment frequently
Ensure all hardware is securely tightened after adjustment
Use a consistent reference (such as a business card) for clearance
Verify alignment before beginning cutting operations
Taking the time to properly align your guide system will improve both performance and blade life.
Get the Best Performance from Your Bandsaw
Centerline alignment is a key part of any bandsaw setup. With proper adjustment, your machine will cut more accurately, operate more smoothly, and deliver more consistent results.
