Upper guide mounting posts play a critical role in how your bandsaw guide system fits, adjusts, and performs. Choosing the correct configuration is essential for proper installation, alignment, and long-term performance.
At SawBlade.com, identifying the correct mounting post type is one of the first steps in selecting the right guide kit. Differences in post shape, size, and mounting style can directly affect compatibility and adjustment range.
This Tech Tip explains the purpose of upper mounting posts, common variations, and how to ensure proper fitment when selecting or upgrading your guide system.
What Is an Upper Guide Mounting Post

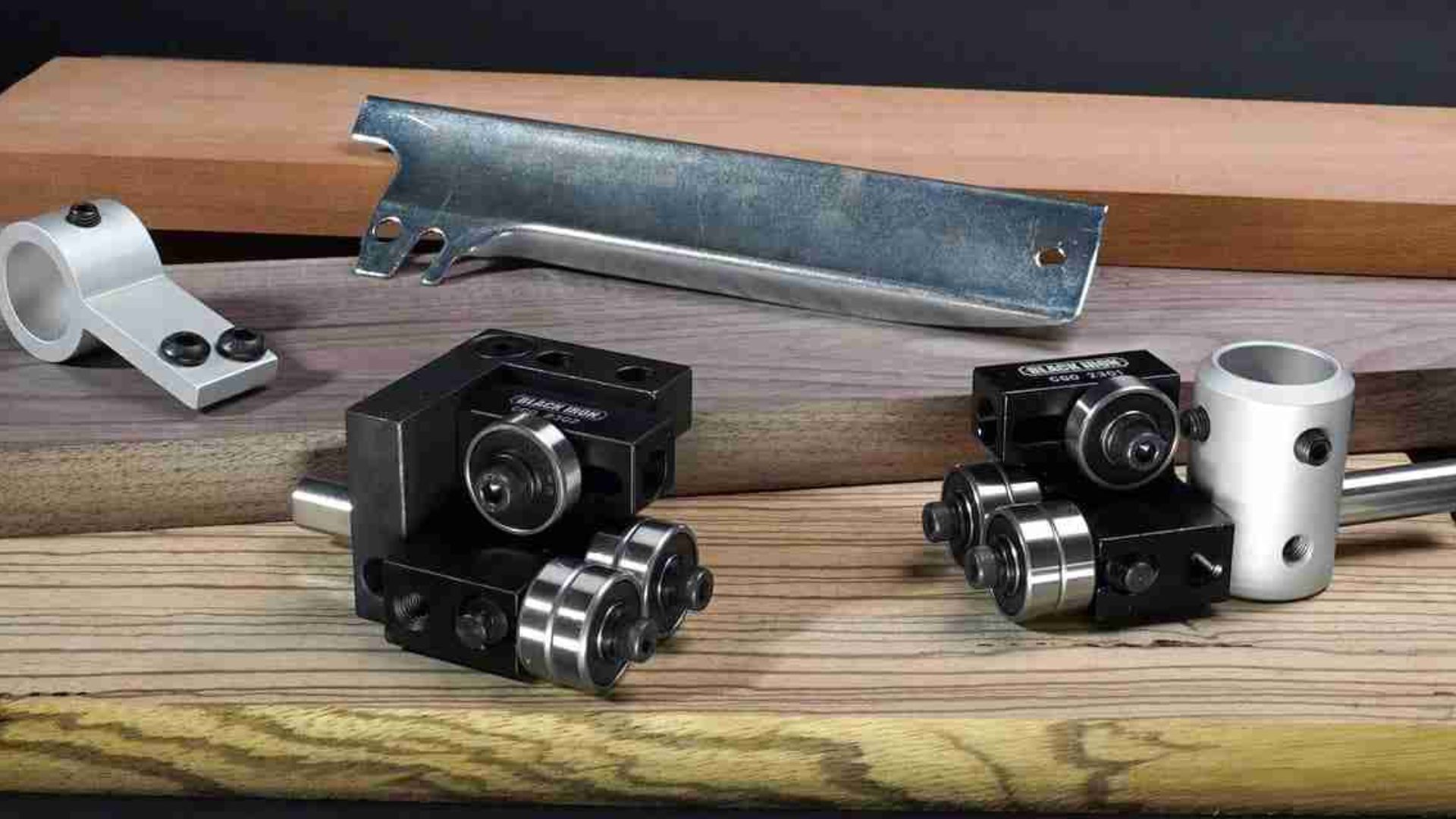

The upper mounting post is the component that supports and positions the upper guide assembly on your bandsaw.
It allows:
Vertical adjustment of the guide system
Proper positioning relative to the blade
Stable support during operation
A properly fitted mounting post ensures the guide system functions correctly across the full range of motion.
Why Mounting Post Fitment Matters
Incorrect mounting post selection can lead to several issues.
Proper fitment helps:
Ensure secure installation of the guide kit
Maintain correct alignment with the blade
Provide full adjustment range
Improve overall cutting stability
Improper sizing or compatibility can result in poor blade support or limited functionality.
Common Types of Mounting Posts
Bandsaws typically use one of the following upper mounting post styles:
Round Posts
Most common and widely supported
Allow for simple and secure installation
Found on many popular machines
Hex (Six-Sided) Posts
Common on several machine brands
Often adapted to a round interface for guide kit compatibility
Require accurate measurement across the flats
Square Posts
Less common configuration
Found on select machines such as certain General or Craftsman models
Typically require an adapter for proper guide kit installation
Identifying the correct post type is essential for selecting the right guide system.
How Mounting Post Type Affects Guide Kit Compatibility
Each mounting post style interacts differently with guide kits.
Round posts allow direct and straightforward mounting
Hex posts are often adapted to fit round-compatible guide systems
Square posts may require additional adapters for proper installation
Selecting the correct configuration ensures proper alignment, secure fitment, and full system functionality.
Information Needed for Proper Fitment
To ensure accurate guide kit selection, provide the following details:
Mounting post type (round, hex, or square)
Post diameter or dimensions
Machine make and model
Photos of the mounting area and guide assembly
This information allows SawBlade.com to quickly evaluate compatibility and recommend the correct solution.
Get the Right Guide Kit for Your Bandsaw
Understanding your bandsaw’s upper mounting post is essential for selecting a guide kit that fits properly and performs reliably.
SawBlade.com can help you identify your mounting configuration and match you with the correct guide system for your machine.
Need help choosing the right guide kit? Contact SawBlade.com and get the right fit the first time.
