Laguna Woodworking Tools

Laguna Tools is the trusted name brand for over 38 years for advanced technology automated CNC machinery and woodworking solutions. Efficient & Precise.

  Clear Filters
M LAG ALED-MAG
ASM M LAG ALED-MAG
ALED-MAG - SPINELOCK LIGHT MAGNET
Laguna Tools, Inc.
UPC - 195444008818

ALED-MAG - SPINELOCK LIGHT MAGNET

  • Spinelock Light Magnet
  • Holds to metal surfaces
Product Details
photo below
Product Work Lights, LED
Product Image
Only $15.00
M LAG ALED-STRONGMAG
ASM M LAG ALED-STRONGMAG

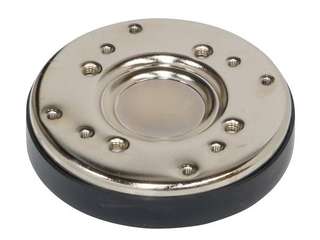

SPINELOCK LIGHT STRONGER MAGNET
Laguna Tools, Inc.
UPC - 195444008832

SPINELOCK LIGHT STRONGER MAGNET

  • Spinelock Light Strong Magnet
  • Holds to metal surfaces
Product Details
photo below
Product Work Lights, LED
Product Image
Only $25.00
M LAG ALEDLATHE
ASM M LAG ALEDLATHE

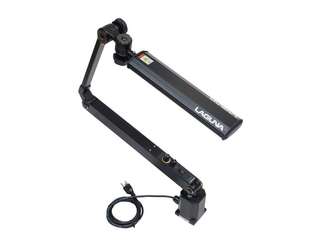

ALEDLATHE - LED DOUBLE ARM ADJUSTABLE
Laguna Tools, Inc.
UPC - 195444008795

ALEDLATHE - LED DOUBLE ARM ADJUSTABLE BRIGHTNESS & COLOR 110V LIGHT

  • 80, 90, 95 CRI are color rendering indexes. This index is used to compare artificial light sources to that of natural light that we perceive through our eyes on a sunny clear day. The higher the CRI, the more real things will look when shined upon.
  • The out new Chameleon LED lights with 90 CRI (ALEDMACH) and 95 CRI (ALEDLATHE) for the best possible lighting. With the Led benefits of long life, low power consumption, and low heat emission; this makes the Laguna LED line the best machine lamp available.
  • Chameleon Color (Temperature) Control allows the user to tune the environment with the best lighting possible. Poor lighting in a workspace can distort colors, reflect poorly, and cause shadows that make the details fade. The Chameleon Color control is technology taken down from surgeons and doctors that we thought would be very useful for the makers.
  • Full Brightness Control works in unison with the Chameleon color control allowing the user to further tune the lighting environment.
  • Casted Impact resistant heads are protecting us for the 2-year warranty we offer on these lights. The heads are water and dust resistant and can withstand a punch well enough for military standards.
  • Shadow Diffusing Lens make the shadows less crisp and noticeable. An undiffused light will cast a shadow with crisp lines, adding distractions. The diffusing lenses gives a more natural and pleasing light.
  • Multiple Joint Design. Solid joints are used to allow the user to move the light wherever it needs to be. These joints can easily be tightened and loosened as desired and are prepped with Loctite prior to shipping.
  • 50,000 hour service life (5.7 Years). This means you can turn the light on, and leave it on, for 5.7 years before the bulb dies. This is because LED technology is very efficient, will not get hot, and uses very little electricity to operate.
  • 100-240V LED Driver, 110V plug included. Another crucial component to longevity of the light is the driver. Our drivers allow for a voltage input anywhere from 100V to 240V and are equipped standard with a 110V 5-15 plug. This means that if you need 208V or 220V you can simple cut the plug and rewire it to the receptacle.
  • Low Heat & Energy Consumption. Based on recent electricity data, the 14W Chameleon lights will only cost $2.56 a year if used for 5 hours every day. Compare this to a typical Halogen Machine light, the cost is up to ten times that, and that is not included replacement bulbs or possible fire hazards.

Features:

  • 95 CRI (best)
  • Chameleon Color (Temperature) Control
  • Full Brightness Control
  • Long Light Ideal For Lathes
  • Shadow Diffusing Lens
  • 6 Joint Design
  • 50,000 hour service life (5.7 Years)
  • 100-240V LED Driver, 110V plug included
  • Low Heat & Eneregy Consumption
  • Dust & Water Resistant
  • Detailed Specs:
  • Bulb Wattage: 14 Watt
  • Bulb Angle: 120
  • Illuminance*: 0-720
  • Temperature: 3000K-6000K
  • Color Rendering Index (CRI): 95 CRI (best)
  • Measurement taken at full brightness from 1 meter from light source. For refernce, an iphone X LED light was measured at 49.8 lumens:
  • Service Life: 50000
  • Controls: Illuminance, Temperature, Power
  • Materials:
  • Lens: Diffused Plastic
  • Head: Alluminum
  • Arm: Alluminum
  • Base: Casted Alloy
  • Dimensions:
  • Maximum Reach: 48"
  • Left or Right Range: 43"
  • Head Dimensions: 12" x 3"
  • Base Tapping: 60mm x 60mm x 60mm x 60mm
Product Details
photo below
Product Work Lights, LED
Product Image
Only $165.00
M LAG ALEDMACH
ASM M LAG ALEDMACH

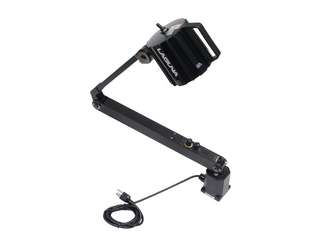

ALEDMACH - LED DOUBLE ARM
Laguna Tools, Inc.
UPC - 195444008801

ALEDMACH - LED DOUBLE ARM ADJUSTABLE BRIGHTNESS & COLOR, ALLOY HEAD, 110V LIGHT

  • 80, 90, 95 CRI are color rendering indexes. This index is used to compare artificial light sources to that of natural light that we perceive through our eyes on a sunny clear day. The higher the CRI, the more real things will look when shined upon.
  • The out new Chameleon LED lights with 90 CRI (ALEDMACH) and 95 CRI (ALEDLATHE) for the best possible lighting. With the Led benefits of long life, low power consumption, and low heat emission; this makes the Laguna LED line the best machine lamp available.
  • Chameleon Color (Temperature) Control allows the user to tune the environment with the best lighting possible. Poor lighting in a workspace can distort colors, reflect poorly, and cause shadows that make the details fade. The Chameleon Color control is technology taken down from surgeons and doctors that we thought would be very useful for the makers.
  • Full Brightness Control works in unison with the Chameleon color control allowing the user to further tune the lighting environment.
  • Casted Impact-resistant heads are protecting us for the 2-year warranty we offer on these lights. The heads are water and dust resistant and can withstand a punch well enough for military standards.
  • Shadow Diffusing Lens make the shadows less crisp and noticeable. An undiffused light will cast a shadow with crisp lines, adding distractions. The diffusing lenses give more natural and pleasing light.
  • Multiple Joint Design. Solid joints are used to allow the user to move the light wherever it needs to be. These joints can easily be tightened and loosened as desired and are prepped with Loctite prior to shipping.
  • 50,000 hour service life (5.7 Years). This means you can turn the light on, and leave it on, for 5.7 years before the bulb dies. This is because LED technology is very efficient, will not get hot, and uses very little electricity to operate.
  • 100-240V LED Driver, 110V plug included. Another crucial component to the longevity of the light is the driver. Our drivers allow for a voltage input anywhere from 100V to 240V and are equipped standard with a 110V 5-15 plug. This means that if you need 208V or 220V you can simply cut the plug and rewire it to the receptacle.
  • Low Heat & Energy Consumption. Based on recent electricity data, the 14W Chameleon lights will only cost $2.56 a year if used for 5 hours every day. Compare this to a typical Halogen Machine light, the cost is up to ten times that, and that is not included replacement bulbs or possible fire hazards.

Features:

  • Service Life: 50000
  • Controls: Illuminance, Temperature, Power
  • Materials:
  • Lens: Diffused Glass
  • Head: Casted Alloy
  • Arm: Alluminum
  • Base: Casted Alloy
  • Dimensions:
  • Maximum Reach: 37"
  • Left or Right Range: 32"
  • Head Dimensions: 5"x5"
  • Base Tapping: 60mm x 60mm x 60mm x 60mmFeatures:
  • 90 CRI
  • Chameleon Color (Temperature) Control
  • Full Brightness Control
  • Casted Impact resitant head
  • Shadow Diffusing Lens
  • 5 Joint Design
  • 50,000 hour service life (5.7 Years)
  • 100-240V LED Driver, 110V plug included
  • Low Heat & Eneregy Consumption
  • Dust & Water Resistant
Product Details
photo below
Product Work Lights, LED
Product Image
Only $175.00
M LAG ALEDSPINE
ASM M LAG ALEDSPINE

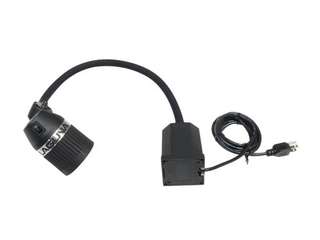

ALEDSPINE - LED FLEX SPINE 110V LIGHT
Laguna Tools, Inc.
UPC - 195444008825

ALEDSPINE - LED FLEX SPINE 110V LIGHT

  • 80, 90, 95 CRI are color rendering indexes. This index is used to compare artificial light sources to that of natural light that we perceive through our eyes on a sunny clear day. The higher the CRI, the more real things will look when shined upon.
  • Casted Impact-resistant heads are protecting us for the 2-year warranty we offer on these lights. The heads are water and dust resistant and can withstand a punch well enough for military standards.
  • Shadow Diffusing Lens make the shadows less crisp and noticeable. An undiffused light will cast a shadow with crisp lines, adding distractions. The diffusing lenses give more natural and pleasing light.
  • Multiple Joint Design. Solid joints are used to allow the user to move the light wherever it needs to be. These joints can easily be tightened and loosened as desired and are prepped with Loctite prior to shipping. The Spinlock light features a sturdy spine that locks into place wherever it is. It does not move.
  • 50,000 hour service life (5.7 Years). This means you can turn the light on, and leave it on, for 5.7 years before the bulb dies. This is because LED technology is very efficient, will not get hot, and uses very little electricity to operate.
  • 100-240V LED Driver, 110V plug included. Another crucial component to the longevity of the light is the driver. Our drivers allow for a voltage input anywhere from 100V to 240V and are equipped standard with a 110V 5-15 plug. This means that if you need 208V or 220V you can simply cut the plug and rewire it to the receptacle.
  • Low Heat & Energy Consumption. Based on recent electricity data, the 14W Chameleon lights will only cost $2.56 a year if used for 5 hours every day. Compare this to a typical Halogen Machine light, the cost is up to ten times that, and that is not included replacement bulbs or possible fire hazards.

Features:

  • Flexible spine that locks in place
  • Polyamide Impact Resistant Head
  • Compatable with every Machine
  • 50,000 hour service life (5.7 Years)
  • 100-240V LED Driver, 110V plug included
  • Low Heat & Eneregy Consumption
  • Dust & Water Resistant
  • Detailed Specs:
  • Bulb Wattage: 7 Watt
  • Bulb Angle: 38
  • Illuminance*: 500
  • Temperature: 5000K
  • Color Rendering Index (CRI): 80 CRI
  • Measurement taken at full brightness from 1 meter from light source. For refernce, an iphone X LED light was measured at 49.8 lumens:
  • Service Life: 50000
  • Controls: Power
  • Materials:
  • Lens: Glass
  • Head: Polyamide
  • Arm: Rubber Metal Locking Chain
  • Base: Polyamide
  • Dimensions:
  • Maximum Reach: 30"
  • Left or Right Range: 26"
  • Head Dimensions: 4" x 3"
  • Base Tapping: 60mm x 60mm x 60mm x 60mm
Product Details
photo below
Product Work Lights, LED
Product Image
Only $99.00
M LAG ATQUADTECI
ASM M LAG ATQUADTECI

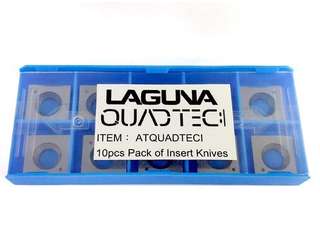

QuadTec: I Carbide Insert Knives
Laguna Tools, Inc.
UPC - 195444047725

QuadTec: I Carbide Insert Knives

  • 10pcs Pack of Quadtec: I Carbide Insert Knives.
Product Details
photo below
Product Knife
Product Image
Only $70.00
M LAG ATSF123-OVERHEAD HOSE
ASM M LAG ATSF123-Overhead Hose

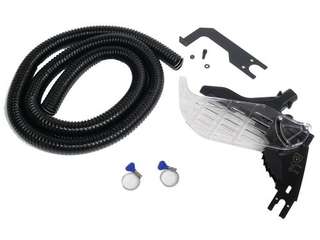

TABLESAW DUST COLLECTION KIT
Laguna Tools, Inc.
UPC - 195444014963

TABLESAW DUST COLLECTION KIT

Product Details
photo below
Product Kits
Product Image
Only $75.00
M LAG ATSHEARTECII
ASM M LAG ATSHEARTECII
ShearTec II Carbide Insert Knives
Laguna Tools, Inc.
UPC - 195444014987

ShearTec II Carbide Insert Knives

  • 10pcs Pack of ShearTec II Carbide Insert Knives.
  • Fits Laguna JX|6 QuadTec: I & JX|8 QuadTec: I Jointer
Product Details
photo below
Product Knife
Product Image
Only $70.00

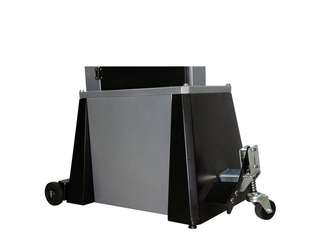

M LAG MBA14/12 WHEEL SYSTEM
ASM M LAG MBA14/12 WHEEL SYSTEM
REVO 12|16: EXPANSION SET
Laguna Tools, Inc.
UPC - 195444259203

REVO 12|16: EXPANSION SET

  • The lathe features forward and reverse spindle rotation as well as a double-threaded 1”x8TPI spindle that allows the user to turn on both sides of the lathe.
  • With the expansion set (ALAREVO1216 Extension) the turner can choose to extend the center to center capacity by 10 inches or outfit their lathe for outboard turning.
  • The high-torque motor controller will allow wood-turners to freely turn up to a 16” work-piece without stalling or bogging down the spindle.
  • The expansion set consist of 3 parts: the 10” cast iron extension that can mount Right or Left side.
  • Tool-Rest extender for outboard use & an adaptor that allows 1” chucks with either Left or Right handed threads to be used outboard.
Product Details
photo below
Product Lathes
Product Image
Only $175.00
M LAG MBA14BX-LIGHT220-DA
ASM M LAG MBA14BX-LIGHT220-DA

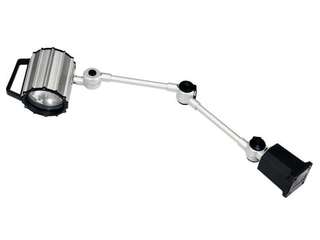

HALOGEN LIGHT DOUBLE ARM 220V
Laguna Tools, Inc.
UPC - 195444259210

HALOGEN LIGHT DOUBLE ARM 220V

  • A high-intensity halogen light provides exceptional lighting for your work.

Fits:

  • 14bx 220 - (1) 220 Plug on Machine
  • 18|bx - (1) 220 Plug on Machine
  • Revo 24|36 - (2) 220 Plugs on Machine

Specs:

  • 220 Volt
  • Long Arm Design
  • Swivels 220°
  • 12 Volt/50 Watt
  • Tilts Vertically 320°
  • Built-in Transformer
  • Independent ON/OFF
  • Ribbed Aluminum Case
  • Bright, Glare-Free Flood Light
  • Reinforced Glass, Dustproof Design
  • Designed for Even Light Distribution
  • Does Not Require Saw to Be Turned On
  • Fits 220 volt 14BX Bandsaw

Bulb:

  • HALOSTAR 50 W 12 V GY6.35
  • HALOSTAR Standard | Low-voltage halogen lamps with pin base
Product Details
photo below
Product Work Lights, LED
Product Image
Only $175.00
M LAG MBA18BX-CX-WS
ASM M LAG MBA18BX-CX-WS

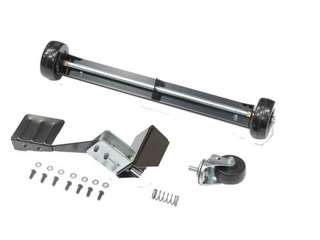

WHEEL SYSTEM FITS 18|BX & 18|CX
Laguna Tools, Inc.
UPC - 195444008825

WHEEL SYSTEM FITS 18|BX & 18|CX

  • Make your bandsaw easier to move with the right mobility kit.
  • 360° Omni-Directional, rubber-coated wheels
  • Pedal raises & lowers front wheel
  • Easy install with no drilling required
Product Details
photo below
Product Kits
Product Image
Only $199.00
M LAG MBAND1412-175
ASM M LAG MBAND1412-175

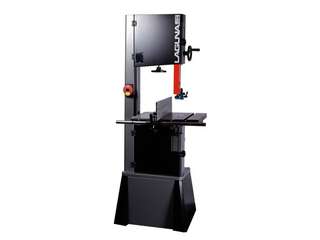

Laguna 14|12 BANDSAW - 12" RESAW
Laguna Tools, Inc.
UPC - 195444259258

Laguna 14|12 BANDSAW - 12" RESAW

  • The 14|12 Bandsaw is a 110 Volt saw that feels like a 220.
  • Features include a pyramid-shaped spine, 1 ¾ HP TEFC Motor, quick release tension, 115-volt outlet, and micro-polished 21 X 16″ table mounted onto oversized Trunion paired with Aluminum Hi/Low Fence.
  • Solid Cast Wheels are electronically, dynamically balanced & fitted with polyurethane one-piece tires designed to run cooler & last longer than conventional tires.
  • The worm gear & pinion is ultra-smooth and engineered to have minimum flex even when fully extended.
  • This is a trade mark of Laguna, just like the famous ceramic Laguna guides.
  • Double windows allow you to check both tension & tracking while the machine is running.
  • 4″ Dust Port -Table Height 38″
  • 110 Volt Outlet -Tension Window
  • Tension Indicator
  • Tracking Window
  • Cast Iron Wheels
  • 45° Table Tilt Right
  • 7° Table Tilt Left
  • 90° Positive Stop
  • 21 1/2″ x 16″ Table
  • Quick-Release Tension
  • Rack & Pinion Upper Guide
  • Heavy Duty Cast Trunion 8″ x 13″
  • Included: 6 Ft Cord w/plug, Nema: 5-15P
  • Premium Anodized Aluminum Throat Plate
  • Hi/Low Aluminum Fence 18″ x 5 1/2″ x 1/2 ”
  • Dual Voltage Motor 115/230, Pre-Wired 115 Volt
  • Motor: 14/7 Amp TEFC
  • HP: 1-3/4 -115/230 V
  • Safety Key
  • 12″ Resaw
  • Stand Included
  • Blade Length: 115″
  • Min. Blade Width: 1/8″
  • Max. Blade Width: 3/4″ -Illuminated On/Off Switch
Product Details
photo below
Product Band Saws
Product Image
Only $1599.00
M LAG MDCBF1110C1M
ASM M LAG MDCBF1110C1M

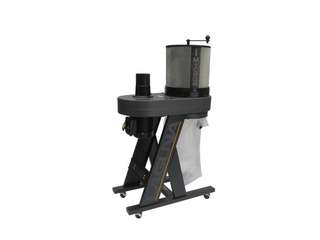

B|FLUX: 1 CANISTER 1 MICRON
Laguna Tools, Inc.
UPC - 195444072475

B|FLUX: 1 CANISTER 1 MICRON

  • The best looking single stage dust collector to hit the market in years. Sleek design and power to match.
  • No more fumbling with a steel band to mount your lower bag, the b|flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the b|flux feels solid & has a low dB rating.
  • The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4″ outlet face downwards.
  • The b|flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between 0.2 ~ 2 microns & features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow.
  • Hand crank cleaning prevents clogging of the filter.

Specs:

  • Motor HP: 1HP
  • Phase: 1
  • Voltage: 110v
  • Amps: 8.4 Amps
  • Hertz: 60
  • Plug: Yes
  • RPM: 3450
  • Switch type: Motor mounted direct switch
  • Hand held remote control: None
  • Shop Setting CFM*: 550
  • Inlet CFM: 650
  • Max Static Pressure (inches of water): 4.86″
  • Impeller/Fan Size: 9″
  • Impeller Material: Steel
  • Impeller type: Radial Fin
  • Balanced To:: ISO 1940
  • Inlet Diameters: 4″ x 1 ports
  • Drum collection bag (Dia. x L): Plastic bag (Ø350 x 980mmL)
  • Canister Filter type: 1 Micron
  • Filtration efficiency: 0.2-2micron @ 99.97%
  • MERV rating: 12
  • Canister diameter: Ø360mm (14.2″)
  • Cansiter length: 300mm (11.8″)
  • Filter Surface Area: 1.6m²/17.2ft²
  • Canister cleaning: Manual Handle crank 360°
  • Wheels: 2″ Ball Caster
  • CSA Approved: Yes
  • Decibel Reading: 76 d B(A) (@9.8ft)
  • Machine weight: 32kgs/71Lbs
  • Shipping weight: 35kgs/77Lbs
  • Assembled Dimensions (L x W x H): 29″ x 14.8″ x 50.4″ | 736x376x1280mm
Product Details
photo below
Product Dust Collectors
Product Image
Only $599.00
M LAG MDCCF15110
ASM M LAG MDCCF15110
C|FLUX: 1

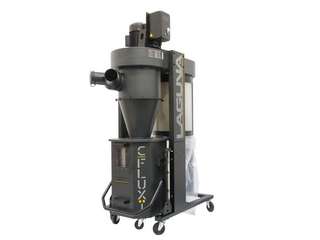

Laguna Tools, Inc.
UPC - 195444072505

C|FLUX: 1

  • The c|flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions have been reevaluated to optimize performance.
  • The c|flux:1 comes standard with a 1-micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron & features 48 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.

Specs:

  • Motor HP: 1.5 HP
  • Phase: 1
  • Voltage: 110v
  • 220v Option available – sold separately
  • Full Load Amperage Draw [FLA]: 18.8(110V) / 9.4(220V)
  • Hertz: 60
  • Plug: No
  • RPM: 3450
  • Switch type: Radio Frequency Remote switch – Black Box
  • Hand held remote control: HF
  • Shop Setting CFM*: 900
  • Inlet CFM: 1314
  • Max Static Pressure (inches of water): 10.1″
  • Impeller/Fan Size: 13.5″
  • Impeller Material: Steel
  • Impeller type: Radial Fin
  • Balanced To:: ISO 1940
  • Inlet Diameters: 6″ by 4″ x 2 ports
  • Drum Capacity: 25 Gal.
  • Octagon drum: Metal drum insert
  • Drum collection bag (Dia. x L): Plastic bag (Ø610 x 950mmL)
  • Canister Filter type: 1 Micron
  • Filtration efficiency: 0.2-2micron @ 99.97%
  • MERV rating: 12
  • Canister diameter: Ø400mm (15.75″)
  • Cansiter length: 500mm (19.69″)
  • Filter Surface Area: 4.5m²/48ft²
  • Canister cleaning: Manual Handle crank. 270 degrees/*Optional Auto cleaning kit available
  • Canister filter lower dust collection: Plastic bag (Ø400 x 600mmL)
  • Base with perforated sheet across canister floor: N/A
  • Wheels: 4″ Flat Caster
  • US/CSA Approved: Yes
  • Decibel Reading: 82 d B(A) (@9.8ft)
  • Machine weight: 105kgs/232Lbs
  • Shipping weight: 130kgs/287Lbs
  • Assembled Dimensions (L x W x H): 42.5″ x 24″ x 68.5″ | 1078x614x1740mm
Product Details
photo below
Product Dust Collectors, Cyclones
Product Image
Only $1599.00
M LAG MDCCF22201
ASM M LAG MDCCF22201

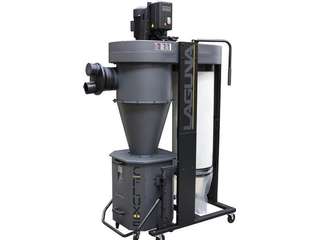

C|FLUX: 2
Laguna Tools, Inc.
UPC - 195444072529

C|FLUX: 2

  • The C|Flux series sets a new standard for cyclones.
  • The horizontal chute is designed to maximize airflow while improving CFM.
  • All shapes and dimensions has been reevaluated to optimize performance.
  • The C|Flux:2 comes standard with a 1-micron canister providing filtration of 99.97% particles between the sizes of 0.2 to 2 micron & features 109 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.

Specs:

  • Motor HP: 2 HP
  • Phase: 1
  • Voltage: 220v
  • Amps: 14 Amps
  • Hertz: 60
  • Plug: No
  • RPM: 3450
  • Switch type: Radio Frequency Remote switch – Black Box
  • Hand held remote control: HF
  • Shop Setting CFM*: 1166
  • Inlet CFM: 1740
  • Max Static Pressure (inches of water): 9.3″
  • Impeller/Fan Size: 14.5″
  • Impeller Material: Steel
  • Impeller type: Radial Fin
  • Balanced To:: ISO 1940
  • Inlet Diameters: 8″ main to 4″ x 2 ports
  • Drum Capacity: 33 Gal.
  • Octagon drum: Metal drum insert
  • Drum collection bag (Dia. x L): Plastic bag (610 x 950mmL)
  • Canister Filter type: 1 Micron
  • Filtration efficiency: 0.2-2micron @ 99.97%
  • MERV rating: 12
  • Canister diameter: 400mm (15.75″)
  • Cansiter length: 900mm (19.69″)
  • Filter Surface Area: 9.5m²/109ft²
  • Canister cleaning: Manual Handle Crank/*Optional Auto Cleaning Kit available
  • Canister filter lower dust collection: Plastic bag (400 x 600mmL)
  • Base with perforated sheet across canister floor: N/A
  • Wheels: 4″ Flat Caster
  • US/CSA Approved: Yes
  • Decibel Reading: 88 d B(A) (@9.8ft)
  • Machine weight: 134kgs/296Lbs
  • Shipping weight: 165kgs/364Lbs
  • Assembled Dimensions (L x W x H): 46″ x 27″ x 79″ | 1178x690x2025mm
Product Details
photo below
Product Dust Collectors, Cyclones
Product Image
Only $1999.00
M LAG MDCCF32201
ASM M LAG MDCCF32201

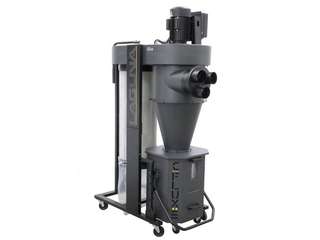

C|FLUX: 3
Laguna Tools, Inc.
UPC - 195444072536

C|FLUX: 3

  • The c|flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM.
  • All shapes and dimensions has been reevaluated to optimize performance.
  • The c|flux:3 comes standard with a 1-micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron & features 109 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.

Specs:

  • Motor HP: 3 HP
  • Phase: 1
  • Voltage: 220v
  • Amps: 22 Amps
  • Hertz: 60
  • Plug: No
  • RPM: 3450
  • Switch type: Radio Frequency Remote switch – Black Box
  • Hand held remote control: High Frequency
  • Shop Setting CFM*: 1624
  • Inlet CFM: 2817
  • Max Static Pressure (inches of water): 11.2″
  • Impeller/Fan Size: 15.5″
  • Impeller Material: Steel
  • Impeller type: Radial Fin
  • Balanced To:: ISO 1940
  • Inlet Diameters: 8″ by 4″ x 3 ports
  • Drum Capacity: 33 Gal.
  • Octagon drum: Metal Drum Insert
  • Drum collection bag (Dia. x L): Plastic bag (610 x 950mmL)
  • Canister Filter type: 1 Micron
  • Filtration efficiency: 0.2-2 micron @ 99.97%
  • MERV rating: 12
  • Canister diameter: 400mm (15.75″)
  • Canister length: 900mm (19.69″)
  • Filter Surface Area: 9.5m²/109ft²
  • Canister cleaning: Manual Handle Crank/*Optional Auto Cleaning Kit available
  • Canister filter lower dust collection: Plastic bag (400 x 600mmL)
  • Base with perforated sheet across canister floor: N/A
  • Wheels: 4″ Flat Caster
  • US/CSA Approved: Yes
  • Decibel Reading: 88 d B(A) (@9.8ft)
  • Machine weight: 140kgs/309Lbs
  • Shipping weight: 170kgs/375Lbs
  • Assembled Dimensions (L x W x H): 46″ x 27″ x 79″ | 1178x690x2025mm
Product Details
photo below
Product Dust Collectors, Cyclones
Product Image
Only $2199.00
M LAG MDCPF15110
ASM M LAG MDCPF15110

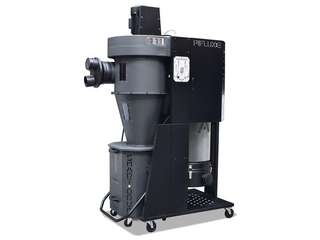

P|FLUX: 1
Laguna Tools, Inc.
UPC - 195444072703

P|FLUX: 1

  • Peerless performance. Sporting standard black HEPA filtration the P|Flux series is filled with innovative details such as:
  • LED shows when the drum is full
  • LED shows when the filter needs cleaning
  • Swing-away doors sport acoustic foam on the inside to lower noise level.

Specs:

  • Motor HP: 1.5 HP
  • Phase: 1
  • Voltage: 110v
  • 220v Option available – sold separately
  • Amps: 18.8 Amps
  • Hertz: 60
  • Plug: No
  • RPM: 3450
  • Control Panel: Embedded Anodized Aluminum w. Magnetic On/Off
  • Hand held remote control: High Frequency
  • Shop Setting CFM*: 900
  • Inlet CFM: 1314
  • Max Static Pressure (inches of water): 10.1″
  • Impeller/Fan Size: 13.5″
  • Impeller Material: Steel
  • Impeller Type: Radial Fin
  • Balanced To:: ISO 1940
  • Inlet Diameters: 6” manifold 4” x 2
  • Drum Capacity: 25 Gal.
  • Octagon Drum: Low Pressure Suction
  • Drum Collection Bag (Dia. x L): Plastic bag (24” x 37 3/8”)
  • Canister Filter Type: HEPA
  • Filtration Efficiency: 0.4micron @ 99.2%
  • MERV Rating: 16+/Refer to tab 4
  • Canister Diameter: Ø400mm (15.75″)
  • Canister Length: 500mm (19.69″)
  • Filter Surface Area: 4.5m²/48ft²
  • Canister Cleaning: Clean using external air compressor (not incl)
  • Canister Filter Lower Dust Collection: Metal end cap with 4″ hookup window & quick release
  • Frame Wheels: (4x) 4″ PU Caster
  • Drum Wheels: (4x) 4″ PU Caster
  • US/CSA Approved: Yes
  • Decibel Reading: 70 d B(A) (@9.8ft)
  • Machine weight: 122kgs/269Lbs
  • Shipping weight: 150kgs/331Lbs
  • Assembled Dimensions (L x W x H): 45 1/2″ x 24 1/4 x 68 1/2″ : 1078x614x1722mm
Product Details
photo below
Product Dust Collectors, Cyclones
Product Image
Only $2299.00
M LAG MDCPF22201
ASM M LAG MDCPF22201
P|FLUX: 2
Laguna Tools, Inc.
UPC - 195444072734

P|FLUX: 2

  • Peerless performance. Sporting standard black HEPA filtration the P|Flux series is filled with innovative details such as:
  • LED shows when the drum is full
  • LED shows when the filter needs cleaning
  • Swing-away doors sport acoustic foam on the inside to lower noise level.

Specs:

  • Motor HP: 2 HP
  • Phase: 1
  • Voltage: 220V
  • Amps: 14 Amps
  • Hertz: 60
  • Plug: No
  • RPM: 3450
  • Control Panel: Embedded Anodized Aluminum w. Magnetic On/Off
  • LED Drum: : Probe activates LED when drum is full
  • LED Canister:: Sensor detects rise in static pressure inside HEPA Filter & activates LED
  • Hand Held Remote Control: High Frequency
  • Shop Setting CFM*: 1166
  • Inlet CFM: 1740
  • Max Static Pressure (inches of water): 9.3″
  • Impeller/Fan Size: 14.5″
  • Impeller Material: Steel
  • Impeller Type: Radial Fin
  • Balanced: ISO 1940
  • Inlet Diameters: 8″ main to 4″ x 2 ports
  • Drum Capacity: 33 Gal.
  • Octagon Drum: Low Pressure Suction
  • Drum Collection Bag (Dia. x L): Plastic Bag (Ø610 x 950mmL)
  • Canister Filter Type: HEPA
  • Filtration Efficiency: 0.4micron @ 99.2%
  • MERV Rating: 16+/Refer to tab 4
  • Canister Diameter: Ø400mm (15.75″)
  • Canister Length: 900mm (35.43″)
  • Filter Surface Area: 9.5m²/109ft²
  • Canister Cleaning: Clean using external air compressor (not incl)
  • Canister Flter Lower Dust Collection: Metal end cap with 4″ hookup
  • Wheels: (4x) 4″ PU Caster
  • US/CSA Approved: Yes
  • Decibel Reading: 76 d B(A) (@9.8ft)
  • Machine Weight: 154kgs/340Lbs
  • Shipping Weight: 185kgs/408Lbs
  • Assembled Dimensions: (L x W x H)1178 x 690 x 2025 mm
Product Details
photo below
Product Dust Collectors, Cyclones
Product Image
Only $2999.00
M LAG MDCPF32201
ASM M LAG MDCPF32201
P|FLUX: 3
Laguna Tools, Inc.
UPC - 195444072741

P|FLUX: 3

  • Peerless performance. Sporting standard black HEPA filtration the P|Flux series is filled with innovative details such as:
  • LED shows when drum is full
  • LED shows when filter needs cleaning
  • Swing-away doors sports acoustic foam on the inside to lower noise level.

Specs:

  • Motor HP: 3 HP
  • Phase: 1
  • Voltage: 220V
  • Amps: 22 Amps
  • Hertz: 60
  • Plug: No
  • RPM: 3450
  • Switch type: Sunken Radio Frequency Remote switch with LED Full drum detection & LED HEPA dirty detection
  • Hand held remote control: High Frequency
  • Shop Setting CFM*: 1624
  • Inlet CFM: 2817
  • Max Static Pressure (inches of water): 11.2″
  • Impeller/Fan Size: 15.5″
  • Impeller Material: Steel
  • Impeller Type: Radial Fin
  • Balanced: ISO 1940
  • Inlet Diameters: 8″ by 4″ x 3 Ports
  • Drum Capacity: 33 Gal.
  • Octagon Drum: Low Pressure Suction
  • Drum collection bag (Dia. x L): Plastic bag (Ø610 x 950mmL)
  • Canister Filter type: HEPA
  • Filtration Efficiency: 0.4micron @ 99.2%
  • MERV Rating: 16+/Refer to tab 4
  • Canister Diameter: Ø400mm (15.75″)
  • Canister length: 900mm (35.43″)
  • Filter Surface Area: 9.5m²/109ft²
  • Canister filter lower dust collection: Metal end cap with 4″ hookup
  • Base with perforated sheet across canister floor: Included
  • Wheels: 4″ Flat Caster
  • US/CSA Approved: Yes
  • Decibel Reading: 76 d B(A) (@9.8ft)
  • Machine weight: 159kgs/351Lbs
  • Shipping weight: 190kgs/419Lbs
  • Assembled Dimensions (L x W x H): 1178x690x2025mm
Product Details
photo below
Product Dust Collectors, Cyclones
Product Image
Only $3199.00
M LAG MJ12X88P-0130
ASM M LAG MJ12X88P-0130

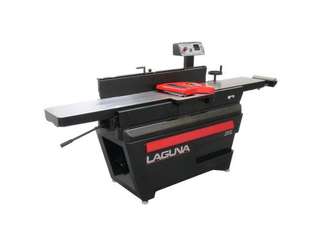

JX|12 ShearTec: II Jointer
Laguna Tools, Inc.
UPC - 195444008559

JX|12 ShearTec: II Jointer

  • All-new for 2021, the Laguna JX|12 ShearTec II is loaded with premium features to make jointing safer and more enjoyable.

JX|12 ShearTec II Standard Features:

  • Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
  • Emergency “Knee-Stop” - The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece.
  • New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine.
  • In-feed Support Roller - Infeed tables are now fitted with pull-out support roller to help support longer materials
  • ShearTec II Cutterhead - The ShearTec II cuttherhead comes as standard equipment on JX|12 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
  • Deluxe Fence - 5-¾” fence with flip-down small fence for intricate work
  • Worklight Ready - Built-in outlet and bracket for optional LED work light
  • Power-feeder Ready - Included bracket to mount optional power-feeder

Specs:

  • Motor: 220v 5HP 1phase 60hz/23Amp.
  • CSA: Yes
  • Bed Size: 12x 88"
  • Infeed Table Pull-out Extension: 10"
  • Rabbeting Capacity: 3/4"
  • Fence Size: 5-3/4 47" Alu Fence
  • Fence Tilt: ±45/90°
  • Max. Depth of Cut: 1/8"
  • Table height from floor: 32"
  • Safety bar shut-off: Yes
  • Bracket to mount Light: Yes
  • 110v outlet for light: Yes
  • Bracket to mount Feeder: Yes
  • Dust Port Diameter: 6"
  • Cutterhead Insert #: 66 x 4-sided Carbide, 6 Row
  • Cutterhead RPM: 5500
  • Cutterhead Diameter: 3-7/8"
  • Bed Adjustment: Parallelogram
  • Built-in infeed table extend roller 10"
  • W/O plug
  • Dimensions set up approx.: 92"x 40"
  • Dimensions Shipping: 91"x 32"x 45"
  • Net/Ship Weight # of boxes: Lbs. 876/1043 1 Box
Product Details
photo below
Product Jointers
Product Image
Only $6999.00
