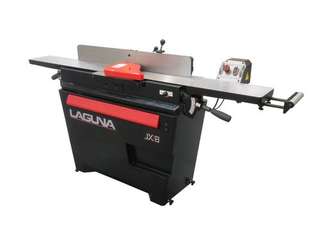

JX|8 QuadTec: I Jointer

• All-new for 2021, the Laguna JX|8 QuadTec I is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 is available in 2 versions. This version is the 110 Volt 1.75 HP version.

JX|8 Quadtec I Standard Features:

• Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
• Emergency “Knee-Stop” - The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece
• New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine
• In-feed Support Roller - Infeed tables are now fitted with pull-out support roller to help support longer materials
• QuadTec I Cutterhead - The all-new QuadTec I cuttherhead comes as standard equipment on the new JX-8 QuadTec I jointer. The QuadTec I produces an amazing surface finish on all woods including difficult hardwoods. The QuadTec I uses 4-sided carbide insert knives that are quieter and much more durable compared to straight HSS knives. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
• Built-In Wheels - No need to purchase a separate mobility kit
• Cast-Iron Tables and Fence

Specs:

• Motor: 110v 1.75HP 1phase 60hz/15 Amp.
• CSA: Yes
• Bed Size: 8 x 72"
• Infeed Table Pull-out Extension: 8"
• Rabbeting Capacity: 1/2"
• Fence Size: 38" x 4-3/4" Cast Iron
• Fence Tilt: ±45/90°
• Max. Depth of Cut: 1/8"
• Table height from floor: 31"
• Safety bar shut-off: Yes
• Bracket to mount Light: No
• 110V outlet for light: No
• Bracket to mount Feeder: No
• Dust Port Diameter: 4"
• Built-in infeed extend plastic roller 8”
• Magnetic Switch: Yes (B/W)
• Cutterhead Insert #: 20 x 4-sided Carbide, 4 Row
• Cutterhead RPM: 5500
• Cutterhead Diameter: 3-1/8"
• Bed Adjustment: Parallelogram
• Plug NEMA 5-15P
• Dimensions set up approx..: 75-1/2" x 26-1/2"
• Dimensions Shipping: 76"x25" x 41"
• Net/Ship Weight # of boxes: Lbs. 380/495 1 Box

JX|8 ShearTec: II Jointer

• All-new for 2021, the Laguna JX|8 ShearTec II is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 is available in 2 versions. This version is the 220 volt 3 HP version.

JX|8 ShearTec II Standard Features:

• Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
• Emergency “Knee-Stop” - The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece.
• New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine.
• In-feed Support Roller - Infeed tables are now fitted with pull-out support roller to help support longer materials.
• ShearTec II Cutterhead - The ShearTec II cuttherhead comes as standard equipment on JX|8 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without need for a knife setting jig.
• Built-In Wheels - No need to purchase a separate mobility kit.
• Cast-Iron Tables and Fence

Specs:

• Motor: 220v 3HP 1phase 60hz/12 Amp.
• CSA: Yes
• Bed Size: 8 x 72"
• Infeed Table Pull-out Extension: 8"
• Rabbeting Capacity: 1/2"
• Fence Size: 38"x 4-3/4" Cast Iron
• Fence Tilt: ±45/90°
• Max. Depth of Cut: 1/8"
• Table height from floor: 31"
• Safety bar shut-off: Yes
• Bracket to mount Light: No
• 110v outlet for light: No
• Bracket to mount Feeder: No
• Dust Port Diameter: 4"
• Cutterhead Insert #: 54 x 4-sided Carbide, 6 Row
• Cutterhead RPM: 5500
• Cutterhead Diameter: 3-1/8"
• Bed Adjustment: Parallelogram
• Built-in infeed extend plastic roller 8"
• Magnetic Switch: Yes (B/W)
• Plug NEMA 6-20P
• Dimensions set up approx.: 75-1/2"x 26-1/2"
• Dimensions Shipping: 76" x 25"x 41"
• Net/Ship Weight # of boxes: Lbs. 380/495 1 Box

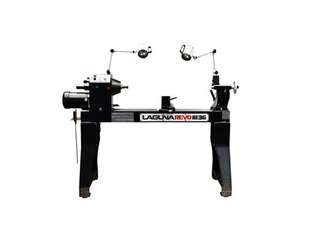

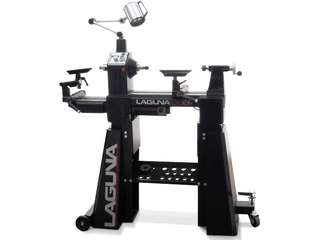

REVO 18|36 110V

• The first feature that will catch your attention is undoubtedly the ergonomically angled control panel made from anodized aluminum.
• The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.
• The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly.
• Steel is the preferred material due to its well-known longevity & strength.
• Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings, you will get an incredible amount of torque.
• The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically.
• Changing from high to low settings is made easy by using the quick release handle.
• The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your workflow.
• Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.

Specs:

• Electrical: 1.5HP, 110 Volt, 60 hz
• Motor: Induction, 1725 RPM, TEFC
• VFD: Delta S1 Variable Frequency Drive
• Phase: 1 Phase input, 3 Phase output
• Poly-Groove Drive Belt w EZ Access
• Recommended Breaker: 15 Amp
• Spring Loaded Spindle Lock
• Max. Outboard Swing: 32”
• Swing over Banjo: 13 ½”
• Steel Bed: ASTM A36
• Spindle Taper: MT#2
• Swing over Bed: 18”
• RPM High:135-3500
• RPM Low: 50-1300
• Tailstock Quill: 4 ½”, Engraved, Self-Ejecting
• Floor to Spindle Center: 41 ½” w Pads
• Front Bearing: TPI Taiwan 6207LLU
• Rear Bearing: TPI Taiwan 6205LLU
• Spindle Index #: 14/36/48 w Lock
• Distance between Centers: 36”
• Headstock Through-Bore: 3/8”
• Headstock Travel: Full Length
• Tailstock Through-Bore: 3/8”
• Tailstock Storage of centers
• Spindle Size: 1 ¼” X8 TPI RH
• Floor to Bed: 32 ½” w Pads
• Accepts vacuum chuck: Yes
• Floor Space: W 60” D 26” H 47”
• Weight (Net/Ship): 427/480 Lbs.

REVO 18|36 220V

• The first feature that will catch your attention is undoubtedly the ergonomically angled control panel made from anodized aluminum.
• The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.
• The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly.
• Steel is the preferred material due to its well-known longevity & strength.
• Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings, you will get an incredible amount of torque.
• The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically.
• Changing from high to low settings is made easy by using the quick release handle.
• The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your workflow.
• Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.

Specs:

• Electrical: 2HP, 220 Volt, 60 hz
• Motor: Induction, 1725 RPM, TEFC
• VFD: Delta S1 Variable Frequency Drive
• Phase: 1 Phase input, 3 Phase output
• Poly-Groove Drive Belt w EZ Access
• Recommended Breaker: 15 Amp
• Spring Loaded Spindle Lock
• Max. Outboard Swing: 32”
• Swing over Banjo: 13 ½”
• Steel Bed: ASTM A36
• Spindle Taper: MT#2
• Swing over Bed: 18”
• RPM High:135-3500
• RPM Low: 50-1300
• Tailstock Quill: 4 ½”, Engraved, Self-Ejecting
• Floor to Spindle Center: 41 ½” w Pads
• Front Bearing: TPI Taiwan 6207LLU
• Rear Bearing: TPI Taiwan 6205LLU
• Spindle Index #: 14/36/48 w Lock
• Distance between Centers: 36”
• Headstock Through-Bore: 3/8”
• Headstock Travel: Full Length
• Tailstock Through-Bore: 3/8”
• Tailstock Storage of centers
• Spindle Size: 1 ¼” X8 TPI RH
• Floor to Bed: 32 ½” w Pads
• Accepts vacuum chuck: Yes
• Floor Space: W 60” D 26” H 47”
• Weight (Net/Ship): 427/480 Lbs.

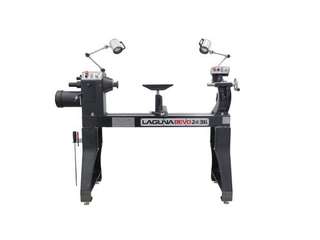

REVO 24|36

• Wall Thickness of legs on the Revo 24|36 is 80% heavier compared to the Revo 18|36.
• Redesigned banjo features a more compact design, 45° cutout & a wider base.
• Having a second control panel that mounts in two positions (high or low) sets the Revo 24|36 apart from any other lathe in the world, not only can you turn off the machine from this control panel, but it allows the operator to change speed as well.
• A switch on the back of the headstock designates whether you control the Revo from the headstock control panel or the corresponding control panel, however, E-Stop works on both at any given time. And YES this amazing control panel comes standard with the Revo 24|36.
• The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe. The bed is made from steel

Specs:

• Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
• Phase: 1-Phase Input, 3-Phase Output
• Recommended Breaker Size: 15 Amp
• VFD: Delta S1 Variable Frequency Drive
• Remote Control Box w/Speed Settings
• Two Ergonomic Control Panel Positions: High/Low
• Drive Belt: Poly-Groove with EZ Access
• Tailstock Quill: 4½”, Engraved, Self-Ejecting
• Floor to Spindle Center: 44½”
• Front Bearing: TPI Taiwan 6307LLU
• Rear Bearing: TPI Taiwan 6205LLU
• Spindle Index#: 14/36/48 w/Lock
• Distance Between Centers: 36″
• Headstock Through-Bore: ⅜”
• Headstock Travel: Full Length
• Tailstock Through-Bore: ⅜”
• Tailstock Storage of Centers
• Spindle Size: 1¼” X 8 TPI RH
• Floor to Bed: 32½” with Pads
• Spring Loaded Spindle Lock
• Max. Outboard Swing: 38″
• Swing over Banjo: 19¾”
• Face Plate: 3″ Diameter
• Tool Rest: 12″
• Steel Bed: ASTM A36
• Headstock Spindle: MT2 taper hardened to 40° HRC
• Tailstock Quill: MT2 taper hardened to 40° HRC
• Swing Over Bed: 24″
• RPM: High: 135-3500 Low: 50-1300
• Accepts vacuum chuck: Yes
• Dimensions: 60″ W x 26″ D x 52¼” H
• Weight for 220V (Net/Ship): 532/605 Lbs.
• The basic dynamic load rating is 30% higher than a 6207 ball bearing.
• Redesigned banjo features more compact design, 45˚ cutout, wider base, increased eccentric rod diameter and larger hanger resulting in a more solid feel when locking in place.

REVO 12|16

• The definitive midi-lathe, Laguna’s REVO 12|16 encapsulates the prestige of Laguna in a small package.
• Featuring a Pulse Width Modulation system motor to maintain consistent torque at any speed, one step cam-action belt change with magnetic door housing, and a luxury banjo w/45º chamfered edge.
• The 1216 controls the 1hp DC motor using pulse width modulation. A big problem with DC motor control is torque at low speeds, and you will find many MIDI lathes with the lowest speed of 250RPM and higher because of this. This is because the cost effect controllers introduce resistance into the voltage to limit the power, which reduces the speed but also reduces the torque at the same rate.
• PWM will deliver full torque across the entire speed range. This allows for tremendous torque at low speeds which is helpful when roughing and precision work. This also allows for outboard turning up to a 16” bowl on a mid-sized lathe.

STANDARD FEATURES

• 24 Positions Index System with Lock & Transparent Window
• Electronic Variable Speed & RPM Digital Read Out (DRO)
• Pulse Width Modulation (PWM) Motor Control
• Hardened 1045 Steel Tool Rest Leading Edge
• Luxury Banjo with 45° Chamfered Edge
• Live & Drive Center On-Board Storage
• Forward & Reverse Spindle Rotation
• 1" REVO Compatible Tool Rest Post
• ACME Lead Screw in Tailstock
• Drive Center Knock-out Rod
• Live Center & Drive Center
• Oversized Handle Stops
• Solid 3-1/2" Metal Brake
• Magnetic Door Latches
• Tool-less Belt Change
• Faceplate Wrench
• 3" Faceplate

SPECIFICATIONS

• Motor: 1 HP DC Permanent Magnet Motor
• Controller: Pulse Width Modulation (PWM)
• Electrical Requirements: 110V-1PH-60HZ
• Recommended Breaker Size: 110V - 15 AMP
• Speed Range High 650 - 3500 RPM
• Speed Range Mid 325 - 1750 RPM
• Speed Range Low 50 - 525 RPM
• Distance Between Centers 15.5" (394mm)
• Swing Over Bed 12-1/2"(318mm)
• Swing Over Banjo 9-1/2"(241mm)
• Max. Outboard Swing 16" (406.4mm)
• Spindle Bore 3/8"(9.5mm)
• Spindle Taper MT2
• Spindle Thread 1"x 8 TPI (both ends)
• Front Bearing 6006LLU
• Rear Bearing 6005LLU
• Indexing 24 positions w/ Lock
• Drive belt Poly-Belt 6 Grooves
• Tail stock quill travel 2-1/2"(63.5mm)
• Tail stock taper MT2
• Overall Size L29.4" W8.9" H17.4"(746.8mm, 226mm, 442mm)
• Floor to bed height 6.7" (170mm) no pads
• Floor to Spindle Center 13" (328.75mm) no pads
• Bed Length 29.4" (746.8mm)
• Tool Rest Length 6" (152.4mm)
• Tool Rest Post Dia. 1" (25.4mm)
• Faceplate Dia. 3" (76.2mm)
• Accepts vacuum chuck: No
• Certification CSA C/US 256540
• Net Weight 118LB (53.5KG)
• Shipping Weight 125LB (56.7KG)
• Shipping Dimensions L35.8" W14.6" H20.5"

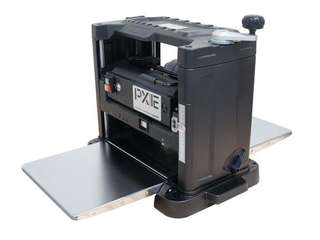

PX|12 QuadTec: I

• Brand new to the Laguna lineup is the all-new PX|12 benchtop planer featuring the new QuadTec I cutterhead. The Laguna PX|12 QuadTec I is loaded with premium features to make woodworking safer and more enjoyable.
• PX|12 QuadTec I Standard Features:
• QuadTec I - The new QuadTec I delivers what woodworkers want most in a compact package by providing a quiet, long-lasting performance with its 24 carbide inserts. The carbide inserts last longer than traditional planer knives and are 4 sided to provide a fresh cutting edge when rotated. The QuadTec I is a game changer when planing tricky grain in hardwoods
• 2 HP Motor - The 2 HP motor provides plenty of power for this Best-in-Class benchtop planer. The motor spins the cutterhead at 10,000 RPM to provide the smoothest possible finish
• Pull Out Extensions - The pull-out extensions and flip-down extensions make it easier to feed stock through the machine

Specs:

• Motor: 115v 2HP Universal 50/60hz/15 Amp.
• Circuit Requirement: 20 Amp
• CSA: Yes
• Bed Size: 12-1/2 x 10-1/4"
• Pull-Out Extension:11-1/4" Flip Down Extensions x 2
• Max. Depth of cut: 3/32"
• Max. Stock Thickness: 6"
• Min. Stock Thickness: 5/32"
• Min. Stock Length: 10"
• Max. Stock Width: 12-1/2"
• Feed Speed: 26 FPM
• Dust Port Diameter: 4" step down to 2-1/2"
• Cutterhead RPM: 10000
• Cutterhead Diameter: 1-7/8"
• Cutterhead Insert #: 26 x 4-sided Carbide, 4 Row
• Thickness Readout: Hair line Readout
• Plug NEMA 5-15P
• Dimensions set up approx.: 24"x 34"
• Dimensions Shipping: 25"x17"x21-1/2"
• Net/Ship Weight # of boxes: lbs. 65/72 1Box

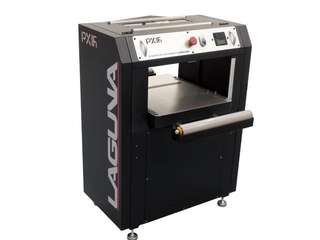

PX|16 ShearTec: II

• The all-new PX|16 planer signals an innovative new design for Laguna planers. The Laguna PX|16 is loaded with new ergonomic features to make woodworking safer and more enjoyable.
• PX|16 ShearTec II Standard Features:
• Infeed and Outfeed Rollers - The PX|16 features infeed and outfeed rollers to assist with material loading and feeding while keeping a compact footprint
• Digital Readout - The DRO has been moved to the control panel to provide better ergonomics and make precision settings easier
• Ergonomic Control Panel - Machine controls have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility. Combined with the new cabinet, the PX|16 sports a sleek, modern design
• Improved Dust Collection - The 4” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
• 4-Post Bed Support - Provides precise and consistent performance with every cut
• ShearTec II Cutterhead - The ShearTec II cuttherhead comes as standard equipment on PX|16 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
• Serrated Infeed Roller - The serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe

Specs:

• Motor: 220v 5HP 1phase 60hz/23Amp.
• CSA: Yes
• Bed Size: 16 x 21-1/2"
• Pull-Out Extension: 4"
• Max. Depth of cut: 1/4"
• Max. Stock Thickness: 8"
• Min. Stock Thickness: 1/4"
• Min. Stock Length: 8"
• Max. Stock Width: 16"
• Feed Speed: 16 & 28 FPM
• Dust Port Diameter: 4" LEFT and RIGHT
• Cutterhead RPM: 5000
• Cutterhead Diameter: 3"
• Cutterhead Insert #: 108 x 4-sided Carbide, 6 Row
• Thickness Readout: Wixey DRO
• Top cover clear window
• Top cover return rollers
• W/O plug
• Dimensions set up approx.: 33"x 36"
• Dimensions Shipping: 38"x30"x46"
• Net/Ship Weight # of boxes: lbs. 493/597 1 Box

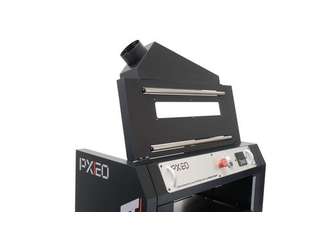

PX|20 ShearTec: II

• The all-new PX|20 planer signals an innovative new design for Laguna planers. The Laguna PX|20 is loaded with new ergonomic features to make woodworking safer and more enjoyable.
• PX|20 ShearTec II Standard Features:
• Infeed and Outfeed Rollers - The PX|20 features infeed and outfeed rollers to assist with material loading and feeding while keeping a compact footprint
• Digital Readout - The DRO has been moved to the control panel to provide better ergonomics and make precision settings easier
• Ergonomic Control Panel - Machine controls have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility. Combined with the new cabinet, the PX|20 sports a sleek, modern design
• Improved Dust Collection - The 4” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
• 4-Post Bed Support - Provides precise and consistent performance with every cut
• ShearTec II Cutterhead - The ShearTec II cuttherhead comes as standard equipment on PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
• Serrated Infeed Roller - The serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe

Specs:

• Motor: 220v 5HP 1phase 60hz/23Amp.
• CSA: Yes
• Bed Size: 20 x 21-1/2"
• Pull-Out Extension: 4"
• Max. Depth of cut: 1/4"
• Max. Stock Thickness: 8"
• Min. Stock Thickness: 1/4"
• Min. Stock Length: 8"
• Max. Stock Width: 20"
• Feed Speed: 16 & 28 FPM
• Dust Port Diameter: 4" LEFT and RIGHT
• Cutterhead RPM: 5000
• Cutterhead Diameter: 3"
• Cutterhead Insert #: 138 x 4-sided Carbide, 6 Row
• Thickness Readout: Wixey DRO
• Top cover clear window
• Top cover return rollers
• W/O plug
• Dimensions set up approx.: 36"x36"
• Dimensions Shipping: 42"x30"x46"
• Net/Ship Weight # of boxes: lbs. 535/638 1Box

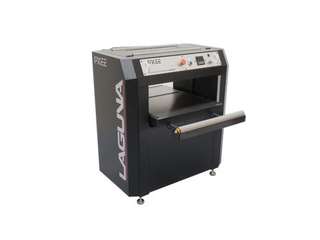

PX|22 ShearTec: II 10 HP 3 PH

• The all-new PX|22 planers are an innovative new design for Laguna planers. The Laguna PX|22 planers are loaded with features to make woodworking safer and more enjoyable. The PX|22 is available in 2 configurations: 7.5 HP single phase or 10 HP three phase.
• PX|22 ShearTec II Standard Features:
• Motor - The PX|22 comes with either 7.5 HP Single Phase or 10 HP 3 Phase motor
• Segmented Infeed Roller - Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness
• Electronic Variable Speed - Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per inch. This feature is something that is normally found on much more expensive models
• Infeed and Outfeed Rollers - The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact footprint
• Digital Readout - The DRO makes setting precise thickness easier
• Ergonomic Control Panel - Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility
• Improved Dust Collection - The 5” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
• 4-Post Bed Support - Provides precise and consistent performance with every cut
• ShearTec II Cutterhead - The ShearTec II is standard on the PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

Specs:

• Motor: 220v 10HP 3phase 60hz /28 Amp.
• CSA: Yes
• Bed Size: 22 x 28"
• Pull-Out Extension: 6"
• Max. Depth of cut: 1/4"
• Max. Stock Thickness: 8"
• Min. Stock Thickness: 1/2"
• Min. Stock Length: 9"
• Max. Stock Width: 22"
• Feed Speed: 10 30 FPM Elec. Vari Spd.
• Dust Port Diameter: 5" LEFT or RIGHT
• Cutterhead RPM: 5000
• Cutterhead Diameter: 3-1/2"
• Cutterhead Insert #: 150 x 4-sided Carbide, 6 Row
• Thickness Readout: Wixey DRO
• Top cover clear window
• Top cover return rollers
• Built-in work lamp(LED)
• Rear side EMG. stop switch
• W/O plug
• Dimensions set up approx.: 40"x 46"
• Dimensions Shipping: 44"x38"x48-1/2"
• Net/Ship Weight # of boxes: lbs. 867/955 1Box

PX|22 ShearTec: II 7.5 HP 1 PH

• The all-new PX|22 planers are an innovative new design for Laguna planers. The Laguna PX|22 planers are loaded with features to make woodworking safer and more enjoyable. The PX|22 is available in 2 configurations: 7.5 HP single phase or 10 HP three phase.
• PX|22 ShearTec II Standard Features:
• Motor - The PX|22 comes with either 7.5 HP Single Phase or 10 HP 3 Phase motor
• Segmented Infeed Roller - Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness
• Electronic Variable Speed - Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per inch. This feature is something that is normally found on much more expensive models
• Infeed and Outfeed Rollers - The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact footprint.
• Digital Readout - The DRO makes setting precise thickness easier
• Ergonomic Control Panel - Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility
• Improved Dust Collection - The 5” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
• 4-Post Bed Support - Provides precise and consistent performance with every cut
• ShearTec II Cutterhead - The ShearTec II is standard on the PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

Specs:

• Motor: 220v 7.5HP 1phase 60hz/32 Amp.
• CSA: YES
• Bed Size: 22 x 28"
• Pull-Out Extension: 6"
• Max. Depth of cut: 1/4"
• Max. Stock Thickness: 8"
• Min. Stock Thickness: 1/2"
• Min. Stock Length: 9"
• Max. Stock Width: 22"
• Feed Speed: 10 - 30 FPM Elec. Vari Spd.
• Dust Port Diameter: 5" LEFT or RIGHT
• Cutterhead RPM: 5000
• Cutterhead Diameter: 3-1/2"
• Cutterhead Insert #: 150 x 4-sided Carbide, 6 Row
• Thickness Readout: Wixey DRO
• Top cover clear window
• Top cover return rollers
• Built-in work lamp(LED)
• Rear side EMG. stop switch
• W/O plug
• Dimensions Shipping: 44"x38"x48"-1/2"
• Net/Ship Weight: 867/955 lbs.

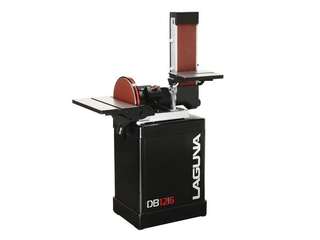

DB12|6 SANDER

• Laguna’s DB12|6 Sander is a multi-purpose machine that gives you two sanding surfaces.
• Motor: 1.5 HP,
• 110 V,
• 1,725 RPM,
• 12 amp,
• Belt Size: 6” x 48”,
• Belt Speed: 1,720 RPM,
• Belt Table: 16” x 9”,
• Belt Table Tilt: 45º down, 25º up,
• Platen Tilt: 0º – 90º,
• Disc Size: 12”,
• Disc-Table Tilt: 45º down, 25º up,
• Disc-Table Size: 16” x 10”,
• Dust-Port: 2” x 2”,
• Dimensions: 35” x 18” x 55”,
• Weight (Net/Ship): 165/180 lbs

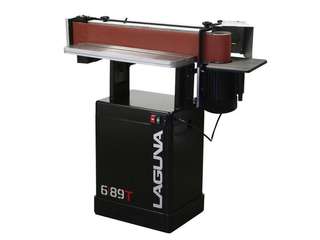

6|89T EDGESANDER

• Laguna’s 6|89T Edge Sander is a horizontal/vertical sanding machine with swing function of the sanding belt.
• It features a 10” x 12” end table with a dust shroud, a footprint of only 51” x 20” x 45”, and a belt speed of as high as 3,900 RPM.

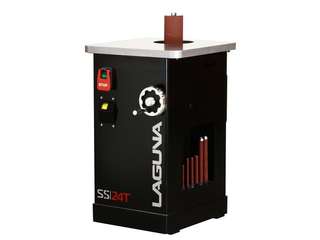

SS|24T SPINDLE SANDER

• The rubber drum can be fitted on both ends to fully utilize the entire spindle.
• Speed 1725 RPM
• Oscillations per minute 75
• Length of oscillation 1-1/2"
• Table size 24" x 24"
• Table tilt 0 X~45 X
• Table hight from floor 37.4"(950mm)
• Motor 1 HP
• Net Weight 137 kgs Gross Weight 145 kgs
• Packing dimensions 27"*27"*46"
• Enclosed spindle storage on machine is included.

Sanding Spindles

• #1 1/4"dia.x5"long
• #2 3/8"dia.x6"long
• #3 1/2"dia.x6"long
• #4 5/8"dia.x6"long
• #5 3/4"dia.x9"long
• #6 1"dia.x9"long
• #7 1-1/2"dia.x9"long
• #8 2"dia.x9"long
• #9 3"dia.x9"long
• #10 4"dia.x9"long

COMPACT SHAPER

• The Compact Shaper from Laguna is already regarded as best in class. Impressive precision fence and wide-range RPM make it a versatile investment for any pro.
• The fit and finish on this world-class machine are incredible. You will be hard-pressed to find a better value than the Compact Shaper: 4 speeds, generously sized table, wheels built right in. Easy spindle lock makes tool changes a snap.
• One of the most impressive features is the speed change. A simple pull of a handle compresses the distance from the spindle to the pulley, changing speeds along the way.
• Another outstanding detail is the flat poly-groove belt which transfers more power with less vibration; something you won’t find in this price range anywhere else.

SPECS:

• Motor, Cutterhead: 15HP 3 Phase, 220 Volt
• Motor, Feed: ¾ HP, DC Electronically Variable speed
• Motor, Vertical: ¾ HP, AC
• DRO (Digital Read Out)
• PLC Programmable Height Setting
• Push-Button Height Setting
• Manual Back-Up Height Setting
• Maximum Stock Width: 25”
• Maximum Stock Thickness: 9”
• Minimum Stock Thickness: 1/8”
• Minimum Stock Length: 10”
• Maximum Stock Removal 01-12” Wide: 6 mm/1/4”
• Maximum Stock Removal 12-25” Wide: 3 mm/1/8”
• Electronic Variable Speed 10-30 FPM.
• Table Size: 52”L x 26”W (including extensions)
• ShearTecII Cutterhead: 6 row 174 Insert Knives
• Cutter-head Diameter: 3-1/2”
• Cutter-head Speed: 4800 RPM
• Knives: 174 ShearTec II, 4-sided, Solid Carbide
• Segmented In-feed Roller: 3”
• Segmented Pressure Bar
• 2 Polished Out-feed Rollers: 3”
• Retractable Table Rollers: Adjustable
• In/Out-Feed Cast Extensions Included 10″ L X 26″ W
• Dustport: 5”
• CSA Components
• Weight 1500 Lbs.

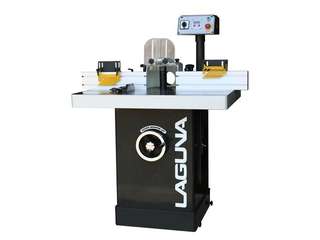

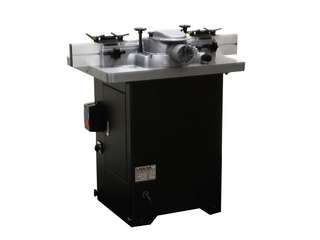

PRO SHAPER

• The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines.
• For starters, the table measures an impressive 31" x 39" and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16" adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt single phase or 7.5 HP 220 volt three phase. Each offers 3 speeds with a unique quick-change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.
• The fit and finish on this machine are top-notch and even includes a wheel kit built right into the base. The Laguna Pro Shaper is designed to give you years of trouble-free performance without breaking the bank.

Specs:

• Motor: 5HP 1 phase 220V 60 HZ
• Table size: 39-5/16″ X 31-7/16″ X 3-1/2″
• Spindle travel: 4″
• Spindle Sizes: 3/4″ and 1-1/4″
• Capacity Under Nut: 6″ (for 1-1/4″) & 4″ (for 3/4″)
• Router Collets: 1/4″ and 1/2″
• Spindle speeds: 5000 / 7000 / 10000 rpm
• Table Opening Diameter: 7-5/16″
• Digital Readout: Standard
• Direction: Forward/Reversing Switch
• Fence: Micro Adjustment
• Weight (Net/Ship): 640/720 Lbs.

PRO SHAPER

• The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines.
• For starters, the table measures an impressive 31" x 39" and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16" adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt single phase or 7.5 HP 220 volt three phase. Each offers 3 speeds with a unique quick-change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.
• The fit and finish on this machine are top-notch and even includes a wheel kit built right into the base. The Laguna Pro Shaper is designed to give you years of trouble-free performance without breaking the bank.

Specs:

• Motor: 5HP 1 phase 220V 60 HZ
• Table size: 39-5/16″ X 31-7/16″ X 3-1/2″
• Spindle travel: 4″
• Spindle Sizes: 3/4″ and 1-1/4″
• Capacity Under Nut: 6″ (for 1-1/4″) & 4″ (for 3/4″)
• Router Collets: 1/4″ and 1/2″
• Spindle speeds: 5000 / 7000 / 10000 rpm
• Table Opening Diameter: 7-5/16″
• Digital Readout: Standard
• Direction: Forward/Reversing Switch
• Fence: Micro Adjustment
• Weight (Net/Ship): 640/720 Lbs.

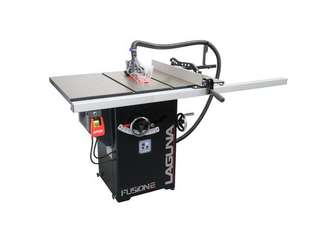

FUSION F2

• The new Laguna Fusion line was developed for demanding woodworkers.
• Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.
• All models are equipped with the precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws.
• Permanently lubricated bearings & Acme screws are
• part of the internal DNA.
• Fusion 2 is the true successor to the original Fusion Table Saw.
• The task was simple: make a saw that was more refined, more precise, and cleaner.
• Robust and versatile fence
• Cabinet mounted trunnion
• Mechanically assisted blade movements
• Hybrid cabinet saw with trunnion that rides on two solid steel 1" posts
• 2 New Features Now Standard On F2 & F3 Fusions
• DRO For The Tilt Angle Of Blade
• Double Window With Hairline For Hi/Low Fence
• Integrated Tool Holder:YES
• TEFC Motor:YES
• 110V Power:YES
• Iron Upper Trunnion: NO

Accessories & Options:

• Dado Throat Plate: PTSF236110175-001
• Thin Kerf Riving Knife:PTSF132110150-0130-000
• Right of wing table: NO
• Outfeed Table Attachment: NO
• Dust Collection Guard: Included with purchase
• Mitre Guage: Included with purchase
• Blade Guard: Included with purchase
• Arbor Wrench: Included with purchase
• Riving Knife: Included with purchase
• Standard Throat Plate: Included with purchase

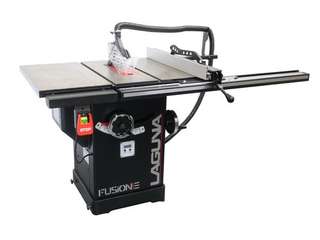

FUSION F3

• The new Laguna Fusion line was developed for demanding woodworkers.
• Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.
• All models are equipped with the precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws.
• Permanently lubricated bearings & Acme screws are part of the internal DNA.
• Fusion 3 is the big brother to Fusion 2.
• Cast iron trunnion
• Upgraded handles & Miter Gauge
• Outfield table equipped with double miter slots
• Built with an extra heavy-duty cabinet, 36" steel fence
• The onboard storage of all accessories.
• The Fusion F3 features professional cabinet saws built with no compromises.
• 2 New Features Now Standard On F2 & F3 Fusions
• DRO For The Tilt Angle Of Blade
• Double Window With Hairline For Hi/Low Fence
• The hybrid fence on the Laguna Fusion offers the best of European and American fence features.
• This fence is NOT designed to be used on the LEFT side of the blade!
• Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.

Electrical

• Power Requirements: 220V-1PH-60HZ
• Amperage (FLA): 14 AMP
• Motor Power:3 HP
• Motor Speed:3450 RPM
• Starter Switch:Magnetic
• Plug Included:6-15
• Circuit Breaker Req.:220V - 25 AMP
• Receptacle Req.: 6-15

General:

• Certification:CSA C/US 175370
• Net Weight:290 lbs (132 Kgs)
• Shipping Weight:390 lbs (177 Kgs)
• Shipping Dimensions:L29-3/4" W46-5/8" H42-5/8"
• Overall Size:L39-3/4" W65-5/8" H38"

Tablesaw:

• Rip Capacity:36" STD, 52" OPTION
• Blade Size:10"
• Vertical Cut Height:3 1/8”
• 45° Cut Height:2 1/8"
• Tilt:0-45° Left
• Min. Kerf:3mm ~1/8" (actual: 0.1875")
• Max. Kerf (Dado Blade): 13/16"
• Arbor Speed:4500 RPM
• Arbor Diameter:5/8"
• Mitre Slot:3/4" to 1" T
• Throat Plate:Zero Clearance Square Composite, w/ adjustment
• Fence:Double Rail Cam Action

Dimensions:

• Overall Size:L39-3/4" W65-5/8" H38"
• w/ 52" Extension:+16" to W in Overall Size
• Base:L18-5/8" W19-1/4"
• Floor to To Table:H34-3/4"
• Table:L27" W20"
• Extension Wing: L27" W12" (x2)
• Throat Plate:L14-5/8" W4-1/16" th1/2"
• Dust Collection:
• Dust Port Outer Diameter:3-7/8"
• CFM Requirement:350 CFM
• Dust Port Outer Diameter:3-7/8"

Materials:

• Table:Cast Iron
• Table Wing:Cast Iron
• CabinetThick: Sheet Steel
• Throat Plate:Composite
• Arbor Wheels:Premium Iron
• Fence:Aluminum Rail, Steel Body
• Upper Trunnion: Cast Iron
• Lower Trunnion: Cast Aluminum Alloy

Features & Comparison:

• Industrial Use:YES
• Enclosed Cabinet:YES
• Integrated Mobility:YES
• Quick Release Guards:YES
• Quick Blade Change:YES
• Integrated Tool Holder:YES
• TEFC Motor:YES
• 110V Power:NO
• Iron Upper Trunnion:YES

Accessories & Options:

• Dado Throat Plate: PTSF236110175-001
• Thin Kerf Riving Knife: PTSF132110150-0130-000
• Right of wing table:Included with purchase
• Outfeed Table Attachment:Included with purchase
• Dust Collection Guard:Included with purchase
• Mitre Guage:Included with purchase
• Blade Guard:Included with purchase
• Arbor Wrench:Included with purchase
• Riving Knife:Included with purchase
• Standard Throat Plate:Included with purchase

FUSION F3 52"

• More than good looks: The new Laguna Fusion line was developed for demanding woodworkers.
• Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.
• All models are equipped with the precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws.
• Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 3 is the big brother to Fusion 2. F3 52" upgraded to 52" Rip Capacity.
• cast iron trunnion
• upgraded handles & Miter Gauge
• outfield table equipped with double miter slots
• built with an extra heavy-duty cabinet, 36" steel fence.
• The onboard storage of all accessories.
• The Fusion F3 features professional cabinet saws built with no compromises.
• 2 New Features Now Standard On F2 & F3 Fusions
• DRO For The Tilt Angle Of Blade
• Double Window With Hairline For Hi/Low Fence
• Horsepower: 3HP
• Phase: Single-Phase
• Amps: 15A (220V)
• Speed: 3450 RPM
• Type: TEFC Capacitor-Start Induction
• Power Transfer: Poly-V Belt Drive
• Horsepower: 3HP
• Phase: Single-Phase
• Amps: 15A (220V)
• Speed: 3450 RPM
• Type: TEFC Capacitor-Start Induction
• Power Transfer: Poly-V Belt Drive
• Bearings: Sealed & Permanently Lubricated
• Maximum Blade Diameter: 10 in. (254 mm)
• Max Rip Right of Blade w/Included Fence & Rails: 52 in. (1320.8 mm)
• Power Requirement: 220V, Single-Phase, 60 Hz
• Prewired Voltage: 220V
• Fence Type: Camlock T-Shape w/European Hi-Lo Face
• Table: Precision-Ground Cast Iron
• Wings: Precision-Ground Cast Iron
• Cabinet: 14 Ga. Steel
• Trunnions: Cast Iron
• Dust Port Size: 4 in. (101.6 mm)
• Blade Guard Dust Port Size: 1.5 in. (38.1 mm)
• Weight, Gross: 533.58 lbs. (242 Kg)
• Weight, Net: 405 lbs. (184 Kg)
• Overall Width (side-to-side): 84.94 in. (2157.47 mm)
• Overall Depth (front-to-back): 56.1 in. (1425 mm)
• Overall Height: 42.91 in. (1090 mm)
• Power Requirement: 220V, Single-Phase, 60 Hz
• Horsepower: 3HP
• 52" Rip Capacity
• Industrial 14 Gauge (2mm) Cabinet
• Accessory Tables (Outfeed & Rip)
• Industrial Fence Rail
• Industrial Fusion Fence
• Premium Electrical & Hardware Components
• Premium Miter Gauge
• Cast Iron Fusion Trunnions
• Cabinet Mounted Arbor
• Cast Iron Table & Wings
• European Hi-Lo Fence
• Premium Zero Clearance Throat Plate
• Fusion Hi-Lo Dust Collection
• Magnetic Contactor Switch
• Quick-Release Blade Guard and Spreader
• Riving Knife Included
• Push Stick included
• Miter Gauge Included
• Blade Changing Tool Included
• Integrated Tool Storage
• Included 10 x 60T Carbide-Tipped Blade
• Premium Arbor and Motor Bearings
• Shipping Dimensions:
• Carton Number: 1
• Carton Type: Wood Crate
• Content: Tablesaw
• Weight, Gross: 482 lbs. (219 Kg)
• Length: 51.18 in. (1300 mm)
• Width: 29.92 in. (760 mm)
• Height: 42.71 in. (1085 mm)
• Must Ship Upright: YES

Shipping Dimensions:

• Carton Number: 1
• Carton Type: Wood Crate
• Content: Tablesaw
• Weight, Gross: 482 lbs. (219 Kg)
• Length: 51.18 in. (1300 mm)
• Width: 29.92 in. (760 mm)
• Height: 42.71 in. (1085 mm)
• Must Ship Upright: YES
• Carton Number: 2
• Carton Type: Wood Crate
• Content: 52" Fence Rails
• Weight: 51.58 lbs. (23.4 Kg)
• Length: 69.88 in. (1775 mm)
• Width: 4.13 in. (105 mm)
• Height: 3.93 in. (100 mm)
• Must Ship Upright: YES
