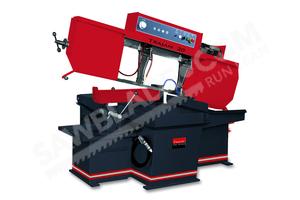

Deluxe 13" x 18" Semi-Auto, Heavy Duty, Metal Cutting Band Saw

Trajan 20 Series 2

Standard Features

  • Blade Guide: Carbide
  • Blade Length: 13'-10
  • Blade Speed: Variable
  • Coolant Pump: Standard
  • Cut Method: Horizontal
  • Feed System: Manual
  • Laser Alignment: Yes
  • Miter Cut: Single 60°
  • Motor: 3HP 3Ø
  • Swivel Method: Head
  • Table Height: 25.75
  • Voltage: 220/440V
  • Ship Wt: 1765 lbs.

Cutting Capacity

Cutting Angle Stock Shape Stock Size
-45° Bar Stock 11"
Rectangular Stock 13" X 11"
-60° Bar Stock 6 7/8"
Rectangular Stock 10" X 6 7/8"
Bar Stock 13"
Rectangular Stock 13" X 18"
Mouseover to zoom
Trajan 20 60 Degree Miter Cutting Horizontal Band SawTrajan 20 Miter Cutting Horizontal Band Saw ControlsTrajan 20 Horizontal Band Saw Heavy Duty GearboxTrajan 20 Miter Cutting Horizontal Band Saw ProtractorTrajan 20 Miter Cutting Horizontal Band Saw Cast Band WheelTrajan 20 Miter Cutting Horizontal Band Saw Swivel Point
Item on backorder

Temporarily Out Of Stock.
Residential    Commercial
No    Yes
This item requires a fork-lift for delivery.
This item requires 2 additional days for Make Ready Service prior to being shipped.

Trajan 20 Series 2 Description and Features

Choose the Trajan 20 Bandsaw: Versatility and Power

What is the Trajan 20?

With a lot of different band saws on the market, it can be difficult to figure out which one is right for you and your manufacturing process. Here are a few highlights of the Trajan 20: “The Trajan 20 has a 13X18 inch semi auto band saw with a ‘unibody’, or one piece construction, It can cut horizontally, or up to 45 or 60 degrees for different Miter cuts, making it a great saw for machine shops, fabricators, valve companies, and many other applications.”

One of the big advantages of the unibody-constructed frame is that it gives the operator plenty of space to cut and handle difficult materials. It has a discharge table that is perfect for keeping heavier metals in place, contributing to cleaner, better cuts. The Trajan 20 also has a four-speed dial control system, giving you a lot more versatility with your saw. Hall added, “These wide range of speeds let you slow down the blade for your harder materials like the 174 or 316, or a higher speed for your mild steels and your structural Steel.”

More Features of the Trajan 20 Band Saw

The Trajan 20 band saw is more heavy duty than the Trajan 712, weighing in at 1600 pounds. Since the saw is so heavy, it gives the operator a lot more stability when cutting, offering the operator more efficient cuts. It comes with a self-contained coolant system that lets you cut harder materials and achieve an extended blade life. The coolant system also comes with a hose that lets you easily clean the work area and the saw.

The Trajan 20 band saw differs from the 712 in that it has a one-inch blade. This one-inch blade gives the operator a range of saw blade options that makes the saw a more versatile tool for any workshop. In order to get straighter cuts, the Trajan 20 is also equipped with a laser that allows the operator to measure the cut without ever having to put the blade on the material.

One thing to keep in mind about the Trajan 20 is that it doesn’t have an auto index, which would allow the cuts to be automatic. However, this is mainly applicable for structural uses and may not be a drawback for your particular operation. The Trajan 20 band saw is a straightforward, easy-to-use product that comes with a one year parts and labor warranty.

Deluxe Heavy Duty Band Saw - 13" x 18" Semi-Auto, Heavy Duty, Metal Cutting Band Saw

Choose the Trajan 20 when you need a heavy-duty band saw that can handle a variety of applications. This cutting machine is engineered to cut through some of the hardest metals. Its features and specs combine to form a powerful, high-performing saw with modern conveniences.

Operator Convenience
With a large working platform, the Trajan 20 band saw offers enough elbow room so operators can work comfortably. This cutting machine is also engineered for quick clean up: it’s cleaning hose and nozzle make washing down this saw a snap.

Sturdy Build and Stable Cuts
The Trajan 20’s is a sturdy cutting machine. It’s overall structure contributes to the saw’s cutting capabilities. The stand, for example, lends stability to the machine body. Tungsten blade guides keep saw blades steady as they cut, which also improves blade life. In designing the Trajan 20 for maximum stability, we also enlarged the hydraulic cylinder and buffer spring. This is one sturdy saw.

Precise Control
Complete with a high gear drive and variable step-pulley, the Trajan 20 has a fast changing speed. This saw also has a hydraulic saw arm lifting system that can raise and lower the saw head according to the operator’s speed preference.

Deluxe Heavy Duty Band Saw – 13" x 18" Semi-Auto, Heavy Duty, Metal Cutting Band Saw
  • Larger working platform and rear roller table enhance working convenience
  • Deluxe stand stabilizes the machine body
  • High gear drive system incorporates a variable step pulley, which provides fast changing speed
  • Tungsten blade guide helps to maintain the cutting stability and extend the blade life
  • Enlarged hydraulic cylinder and buffer spring enhance the cutting stability
  • Hydraulic saw arm lifting system can lift the saw head up and down with preferred speed
  • Designed Tru-Lock Vise provides fast clamping
  • Cutting angle from 0 to -60 degrees without moving stock
  • Cleaning hose and nozzle assist in washing chips away
  • Coolant system for wet cutting
  • With Bi-metal blade, chip brush and length stop set
  • Includes laser indicator and hydraulic tension meter
